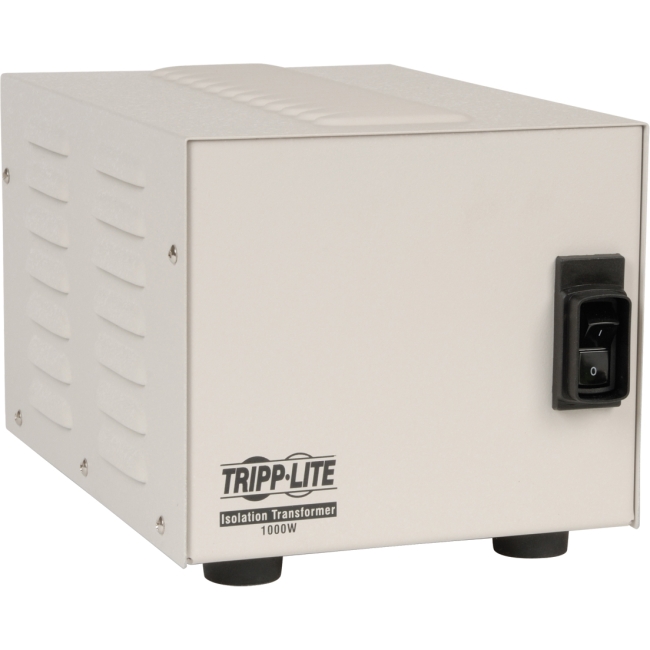

Tripp Lite IS1000HG

Isolator Series UL60601-1 Listed Medical Grade Isolation Transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. An internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL60601-1 medical-grade listing with hospital-grade plug and outlet receptacles makes Isolator medical-grade transformers ideal for protection of medical electronic equipment in patient-care areas. Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels less than 100 microamps. Secondary neutral-to-ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment, and an inexpensive alternative to dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients and harmonics generated by other on-site loads and utility or lightning related surge conditions. Active transformer filtering provides continuous common-mode noise rejection with no wearable parts. Unique ability to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1000HG includes 4 widely spaced NEMA 5-15R hospital-grade output receptacles, a 10-ft. power cord, hospital-grade input plug, circuit breaker overload protection, and lighted power switch. Rugged all-metal unit housing; ships ready for placement in any industrial, medical, office or network environment. PLUG/OUTLETS: Input - NEMA 5-15P Hospital Grade; Output - 4 NEMA 5-15R Hospital Grade ELECTRICAL: 120V AC, 60Hz, 8.3A (Requires NEMA 5-15R wall receptacle)

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	IS1000HG
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	IS1000HG
Product Name	Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression
Product Type	Surge Suppressor/Protector
Technical Information
Plug/Connector Type	NEMA 5-15P-HG
Receptacles	4 x NEMA 5-15R-HG
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Power Handling	1000 VA
Surge Energy Rating	680 J
Physical Characteristics
Power Cord/Cable Length	10 ft
Height	7.3"
Width	7.3"
Depth	10.5"
Weight (Approximate)	36.80 lb
Miscellaneous
Package Contents	Isolation Transformer - Medical Grade Line Noise Reduction and Spike Suppression Instruction Manual with Warranty Information
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year

General Information
Product Type	Isolation Transformers
Power Rating	1 kVA
Primary Voltage Rating	120 V
Secondary Voltage Rating	-
Secondary Current Rating	-
Mounting Style	-
Primary Winding	-
Secondary Winding	-
Length	7.75 in
Width	184.15 mm
Height	196.85 mm
Outside Diameter	-

Tripp Lite Isolator series UL2601-1 listed Hospital Grade isolation transformers offer line isolation, continuous noise filtering and enhanced common mode surge suppression. Internal low-impedance isolation transformer component offers 100% isolation from the input AC line. Full UL2601-1 medical grade listing with hospital-grade plug and outlet receptacles makes Isolator Hospital Grade transformers ideal for the protection of sensitive electronic equipment in patient-care areas. Isolation transformer with Faraday shield reduces the cumulative leakage current of the Isolator and connected equipment to levels below 300 microamps. Secondary neutral to ground bonding virtually eliminates common mode noise, providing an isolated neutral-ground reference for sensitive equipment and an inexpensive alternative to the installation of dedicated circuits and site electrical upgrades. Removes EMI/RFI noise, utility switching transients, and harmonics generated by other on-site loads and utility or lightning related surge conditions. Additional surge suppression components placed at the line input and output combined with full line isolation offers continuous filtering of a full range of power line noise in all modes. Active transformer filtering offers continuous common-mode noise rejection with no wearable parts, uniquely able to reduce surges in the worst of power environments to harmless levels. Reduces 6000V IEEE587 Cat A&B ring wave and combination wave test surges to only 0.5V common mode. Model IS1000HG includes 4 widely spaced NEMA5-15R hospital grade output receptacles, a 6 ft power cord, hospital grade input plug, circuit breaker overload protection and lighted power switch. Rugged all-metal unit housing ships ready for placement in any industrial, medical, office or network environment. 2 year warranty.

Specifications:

Manufacturer		Tripp Lite
Manufacturer Website		www.tripplite.com
Nominal Voltage / Frequency		120V / 60Hz
VA / Watt Capacity		1000
Amp Capacity		8.3A at 120V AC
Transformer Type		Medical-grade, low impedence transformer-based line isolation transformer
Total Harmonic Distortion		Less than 1%
Over Current Protection		9.0A circuit breaker
Output Receptacle Qty / Type		4 NEMA 5-15R hospital-grade outlets
Input Plug Type		NEMA 5-15P hospital-grade plug
Input Cord Length		6.00 ft./1.83 m
Leakage Current		Less than 300 microamps
Efficiency		96%
Suppression Joule Rating		680 (510 input/170 output)
Noise Suppression Rating		35-65 DB
Surge Test Conditions		Per ANSI/IEEE C62.41 - IEEE587 Cat. A & B test waveforms
Let-through Voltage (Ring Wave)		L-N: 20V L-G: 20V N-G: 0.5V
Let-through Voltage (Combination Wave)		L-N: 250V L-G: 250V N-G: 0.5V
Cooling Method		Convection
Form Factor		Small tower format
Unit Dimensions (HWD/in.)		7.75 x 7.25 x 10.5
Shipping Weight		58.00 lbs /26.31 kg
Warranty		2-year limited product warranty
Approvals		UL (UL Series AGIS1000YWN), cUL
