TRIPP LITE

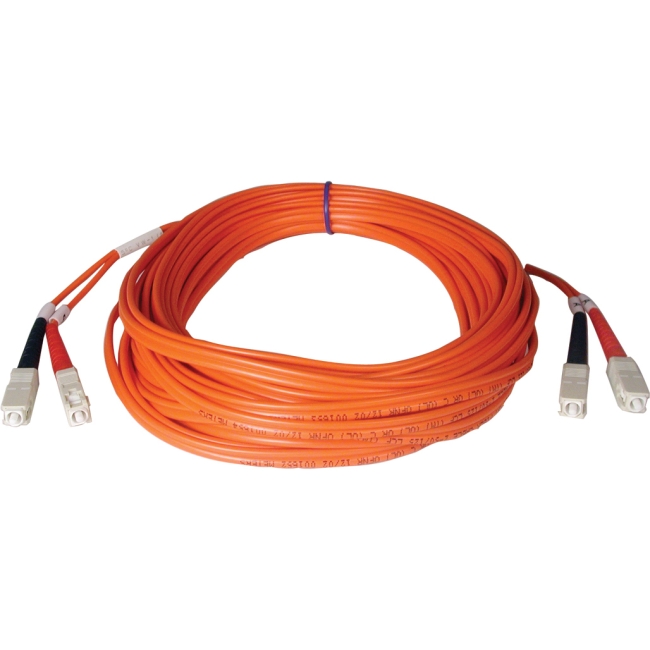

N506-15M Tripp Lite Duplex Multimode 50/125 Fiber Patch Cable

Mfg Part Number:  N506-15M
Image may not reflect the actual item.
Price: $59.99 + Free Shipping
Quantity:
In Stock: 194
Last Updated: May 05, 2025
No Sales Tax except these states
, PO and Wire.

Tripp Lite's 15-meter multimode duplex Fibre Channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. 50/125 Duplex multimode fiber is most commonly used in Fibre Channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks as well. Also available in 1, 2, 3, 5, 10, 30, and 50 meter lengths. Search "N506-" to bring up all lengths. Also search "N516-" for SC-LC cables, and "N520-" for LC-LC cables. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.

More from the Manufacturer

Main Specification
General Information
Manufacturer Eaton Corporation
Manufacturer Part Number N50615M
Manufacturer Website Address https://tripplite.eaton.com/
Brand Name Tripp Lite by Eaton
Product Name Duplex Fibre Channel Patch Cable
Product Type Network Cable
Technical Information
Cable Type Fiber Optic
Cable Characteristic Patch Cable
Cable Length 49.20 ft
Connector Type on First End SC Network - Male
Connector on First End Details 2 x SC Network - Male
Connector Type on Second End SC Network - Male
Connector on Second End Details 2 x SC Network - Male
Jacket Type Plenum
Miscellaneous
Package Contents
  • Duplex Fibre Channel Patch Cable
  • 15M duplex MMF cable SC/SC 50/125 fiber
Additional Information
  • Fiber type: all glass graded index
  • Core diameter: two 50+/-3 microns
  • CLAD diameter: 125+/-2 microns
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns
  • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
  • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
  • Numeric apeture: .275 nominal
  • Proof test level: 100,000 PSI
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
Certifications & Standards
  • FDDI
  • OFNR
Country of Origin China
Warranty
Limited Warranty Lifetime
product information
General Information
Mode -
Port Type -
Application -
Connector End A -
Connector End B -
Cable Type -
Fiber Diameter -
Length -
Number of Fibers -
Ferrule Material -
General Information
Manufacturer Tripp Lite
Manufacturer Part Number N506-15M
Manufacturer Website Address www.tripplite.com
Product Name Duplex Fibre Channel Patch Cable
Marketing Information

Tripp Lite's multimode duplex fiber channel SC/SC patch cable is manufactured from 50/125 zipcord fiber. The cable has SC connectors on each end, a PVC jacket and is FDDI and OFNR rated. Duplex multimode fiber is most commonly used in fiber and fibre channel applications. It is backward compatible with 62.5 micron fiber and built-in headroom for future applications. The cable provides higher bandwidth optimized for Gigabit and 10Gbps networks. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
Product Type Duplex Fiber Cable Multimode External
Technical Information
Cable Length 49.21ft
Number of Connectors 4
Connector Details
  • 2 x SC Male
  • 2 x SC Male
    		•
    Connectors
  • 2 x SC
  • 2 x SC
    		•
    Grade/Rating/Specifics 50/125 micron
    Jacket PVC
    Physical Characteristics
    Shipping Dimensions 9.5" Height x 6.5" Width x 1.25" Depth
    Shipping Weight 0.38 lb
    Miscellaneous
    Additional Information
  • Fiber type: all glass graded index
  • Core diameter: two 50+/-3 microns
  • CLAD diameter: 125+/-2 microns
  • Primary coating diameter: 245+/-15 microns
  • Primary coating material: acrylate
  • Secondary coating diameter: 900+/-50 microns
  • Attenuation @850NM: 3.5DB/KM maximum, @1300NM: 1.0DB/KM maximum
  • Bandwidth @850NM: 220 MHz-KM minimum, @1300NM: 600 MHz-KM minimum
  • Numeric apeture: .275 nominal
  • Proof test level: 100,000 PSI
  • Insertion loss testing performed on every connector (0.2db typical) and provided with cable
    • Certifications & Standards
  • FDDI
  • OFNR
    • Manufacture Warranty
    Standard Warranty Lifetime Limited
    WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
