Premier Mounts Symmetry SYM-DB-FT Mounting Bracket for Flat Panel Display, Digital Signage Display, Menu Board

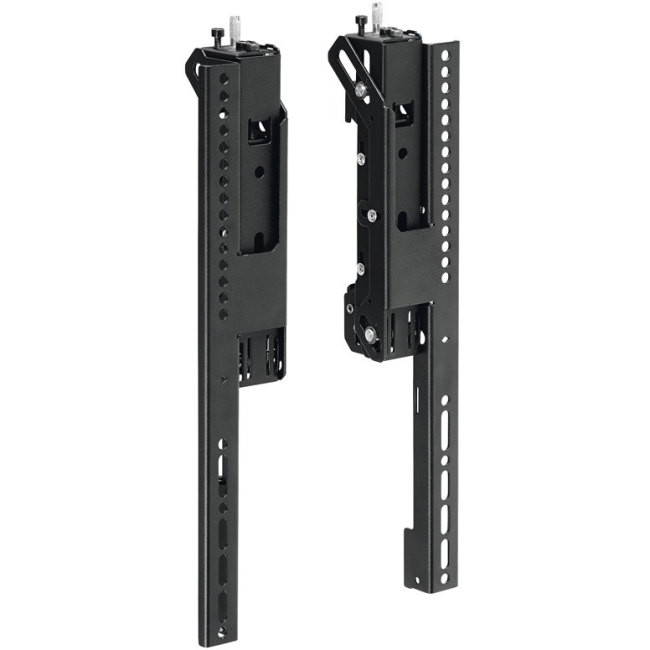

The SYM-DB-FT is a set of two display brackets with fine tune adjustments in Premier Mounts' Symmetry Series, which is an easy to use modular flat panel display mounting solution series designed for rapid installation and adjustment.

The Symmetry Series consists of two main components: an interface bar (horizontal fitment) and a set of 2 display brackets (vertical fitment). Different display brackets are available, such as the Fine Tune Display brackets that offer 6-point (x,y,z) adjustments for precise display bezel alignment; and the Tilt Brackets that offer 10° of continual downward tilt. The L-brackets that anchor the interface bar to the wall can be moved anywhere along the interface bar to match the stud location in the wall, simplifying installation. The modular components are designed to reduce installation time by over 40% compared to traditional individual single display mounting systems, and deliver precise alignment features to ensure perfect display bezel alignment. The Symmetry Series is one system that can be configured to fit a variety of digital signage needs, including video walls, transportation schedules and menuboards.

General Information
Manufacturer	Premier Mounts
Manufacturer Part Number	SYM-DB-FT
Manufacturer Website Address	http://www.premiermounts.com
Brand Name	Premier Mounts
Product Line	Symmetry
Product Model	SYM-DB-FT
Product Name	Symmetry Series Display Brackets with Fine Tune Adjustment
Packaged Quantity	2
Product Type	Mounting Bracket
Product Information
Device Supported	Digital Signage Display
Device Supported	Flat Panel Display
Device Supported	Menu Board
Maximum Load Capacity	176 lb
Features	Kickstand
Features	Adjustable
Features	Tilt
Physical Characteristics
Product Color	Black
Product Material	Aluminum
Height	19"
Width	1.30"
Depth	1.90"
Weight (Approximate)	8.02 lb
Miscellaneous
Country of Origin	Netherlands
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
