TRIPP LITE
SR25UBSD3 Tripp Lite 25U Rack Enclosure Server Networking Cabinet Shallow Depth
Mfg Part Number: SR25UBSD3 , Item #: 2348666
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
Image may not reflect the actual item.
Price: $1,260.21
+ Free Shipping
Quantity:
In Stock: 4
Last Updated: May 15, 2025
No Sales Tax except these states
, PO and Wire.

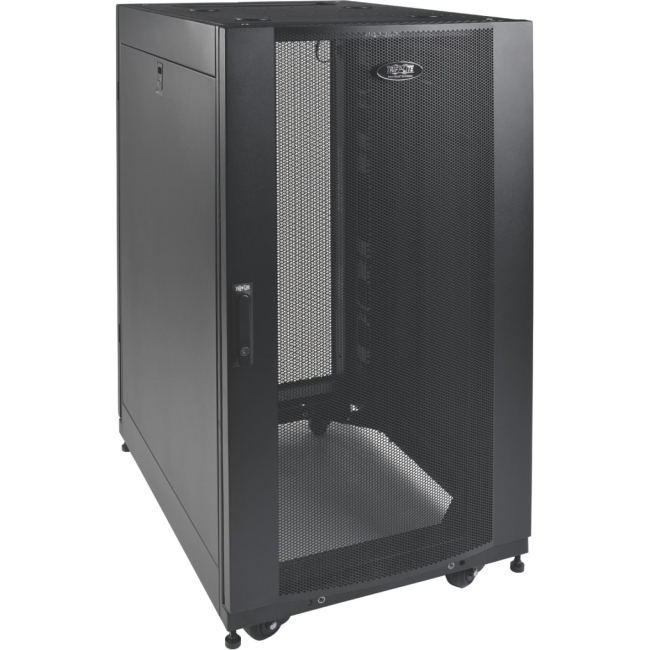

The SR25UBSD3 25U SmartRack Shallow-Depth Rack Enclosure Cabinet houses equipment up to 27 inches in depth-ideal for storing shallow audio/video components and smaller equipment in areas with limited floor space. Constructed of steel with a resilient textured powder-coated finish, the SR25UBSD3 features adjustable mounting rails that accommodate up to 3,000 pounds of equipment in 25U of rack space.
To ensure your valuable equipment stays safe and secure, the side panels, reversible back door and reversible, removable front door lock to prevent unauthorized access. The front and rear doors are perforated, which allows air to flow freely through the rack to keep equipment cool. Vented top panels and an open bottom help remove warm air from the enclosure and draw in cool air by convention(they also support the installation of standard case fans, such as Tripp Lite's SRFANROOF).
The SR25UBSD3 comes fully assembled with removable casters that let you roll the fully loaded enclosure to its desired location. Installing equipment within the enclosure is easy enough with its square mounting holes and numbered rack spaces. The front and rear vertical rails adjust in ΒΌ-inch increments from 4 to 27 inches. Just unscrew the rails, slide them to the desired depth, and tighten the screws. The enclosure supports toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This makes cable routing to rack equipment easier and reduces clutter.
To ensure your valuable equipment stays safe and secure, the side panels, reversible back door and reversible, removable front door lock to prevent unauthorized access. The front and rear doors are perforated, which allows air to flow freely through the rack to keep equipment cool. Vented top panels and an open bottom help remove warm air from the enclosure and draw in cool air by convention(they also support the installation of standard case fans, such as Tripp Lite's SRFANROOF).
The SR25UBSD3 comes fully assembled with removable casters that let you roll the fully loaded enclosure to its desired location. Installing equipment within the enclosure is easy enough with its square mounting holes and numbered rack spaces. The front and rear vertical rails adjust in ΒΌ-inch increments from 4 to 27 inches. Just unscrew the rails, slide them to the desired depth, and tighten the screws. The enclosure supports toolless button-mount 0U installation of up to four compatible PDUs and cable managers. This makes cable routing to rack equipment easier and reduces clutter.
Main Specification
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SR25UBSD3 |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartRack |
| Product Model | SR25UBSD3 |
| Product Name | SR25UBSD3 25U SmartRack Shallow-Depth Rack Enclosure Cabinet |
| Product Type | Rack Cabinet |
| Technical Information | |
| Application/Usage | A/V Equipment |
| Physical Characteristics | |
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Product Material | Steel |
| Maximum Weight Capacity | 3000 lb |
| Dynamic/Rolling Weight Capacity | 3000 lb |
| Static/Stationary Weight Capacity | 3000 lb |
| Height | 50" |
| Width | 23.6" |
| Depth | 32.6" |
| Weight (Approximate) | 190 lb |
| Rack Height | 25U |
| Rack Depth | 27" |
| Miscellaneous | |
| Package Contents |
|
| Assembly Required | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
