DIGI WVA-J200-10 10-pack of WVA-J200

Wireless adapter installs in minutes without cab-cluttering cables to give Transportation Solution Providers access to vehicle bus data

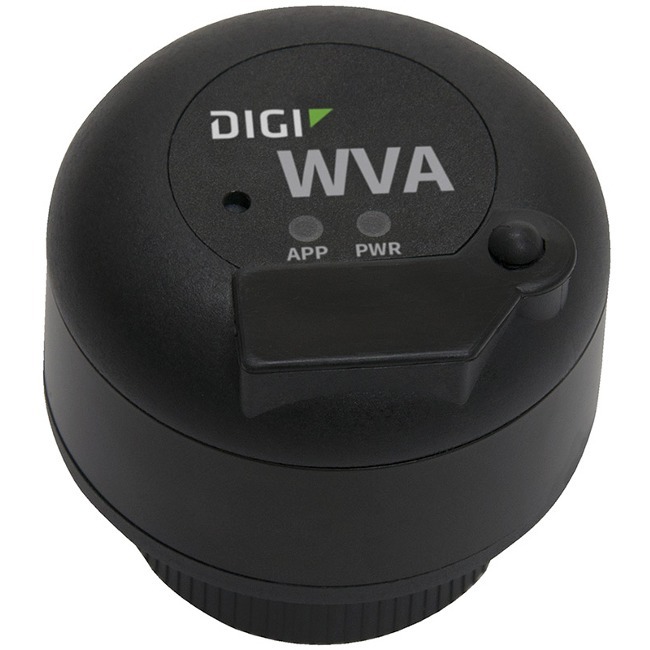

Digi's Wireless Vehicle Bus Adapter (WVA) is a rugged, compact plug-in device that provides easy access to vehicle data via standard Wi-Fi and web services. The WVA installs in minutes by connecting directly into the diagnostic port of the vehicle. Support for J1708 and J1939 standards allows the WVA to work with almost any fleet vehicle on the road today.

The WVA enables Transportation Solution Providers to reduce their development costs, have fastest time to market and expand their solution offering. Low-cost hardware plus a zero dollar installation cost allows TSPs to target medium and small fleets with their solution; something that has been cost prohibitive until now.

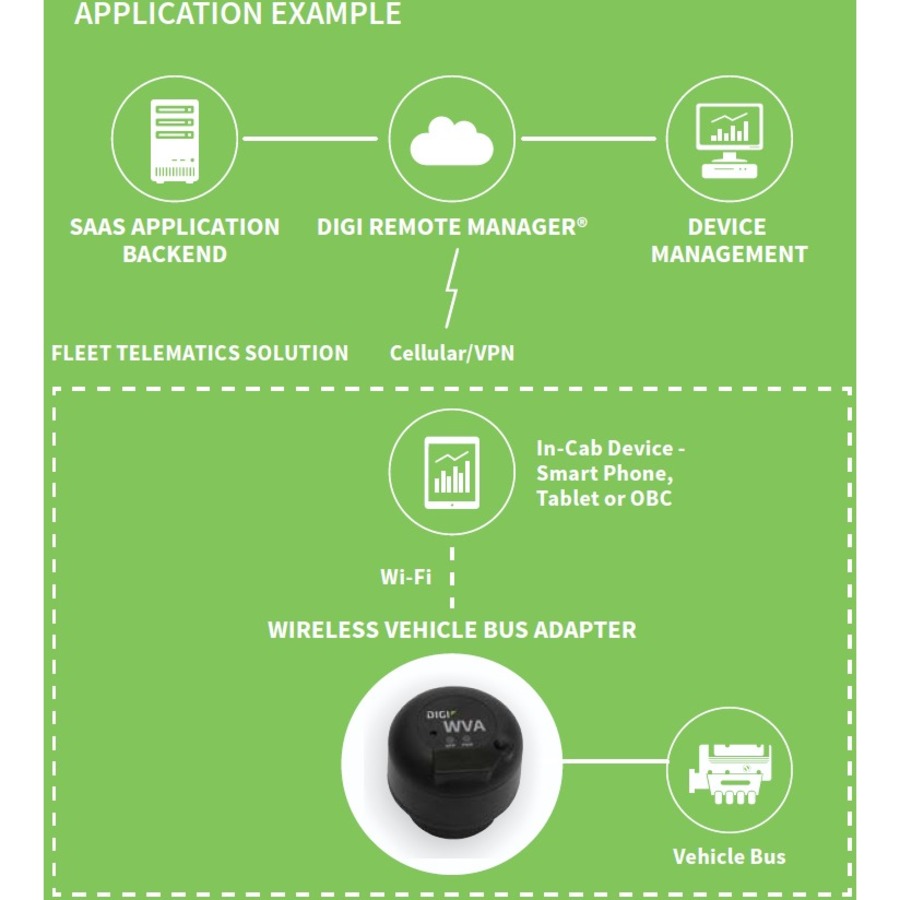

A web services API accelerates integration with existing applications. Vehicle data can be read, subscribed to, or have programmed alert levels. The WVA handles the J1708/J1939 protocols and delivers only the vehicle data your application needs. The WVA stays up-to-date with the latest J1939 standards, meaning an application does not need to change when the standard changes.

BENEFITS

• On-board J1939/J1708 message processing simplifies integration with applications
• Less than 5 minutes to install, uninstall or replace
• No cabling, no cluttering of the cab
• Supports emerging mobile devices: Android and iOS smartphones, tablets and OBCs
• Power management to minimize drain on vehicle battery
• Open architecture based on industry standards: Linux, REST APIs, Wi-Fi 802.11
• 3-year warranty on hardware
• Best-in-class tech support and integration services

General Information
Manufacturer	Digi International
Manufacturer Part Number	WVA-J200-10
Manufacturer Website Address	http://www.digi.com
Brand Name	Digi
Product Name	Wireless Vehicle Bus Adapter (WVA), Wi-Fi, Telematics Version, 10 Unit Bulk Pack
Packaged Quantity	10
Product Type	Vehicle Bus Adapter
Physical Characteristics
Height	2.3"
Weight (Approximate)	4.16 oz
Miscellaneous
Additional Information	GENERAL: MANAGEMENT WebUI, Digi Remote Manager SOFTWARE REST web services OPERATING SYSTEM Linux SECURITY HTTPS, WPA2, Admin password MEMORY Total: 128 MB Flash, 64 MB RAM; Available user space: 20 MB Flash LEDS Power, SW defined ANTENNA Internal MECHANICAL: DEVICE CONNECTOR 9-Pin Deutsch DIAMETER 2.15 in WI-FI: 802.11 b/g/n DATA RATE Up to 72.2 Mbps TRANSMIT POWER 1 MB: 12.5 dBm; 54 MB: 12.25 dBm; 65 MB: 9.25 dBm RECEIVER SENSITIVITY 1 MB: -91 dBm; 54 MB: -75 dBm; 65 MB: -71 dBm MODES Access Point, Client and Dual Modes WI-FI SECURITY WPA2 INTERFACES: USB Type A; Host mode only BUZZER Yes; SW defined ACCELEROMETER 3 Axis (2/4/8g selectable) VEHICLE BUS Dual J1939 (CAN) and J1708 CAN BAUD RATES Up to 500 kbps POWER REQUIREMENTS: POWER INPUT/POWER SUPPLY 9-36 VDC POWER CONSUMPTION Peak: 2.5 W, Idle: 1.5 W, Sleep 30 mW Environmental/Regulatory Approvals: NEMA: IP54 OPERATING TEMPERATURE: -40° C to +70° C (-40° F to +158° F) STORAGE TEMPERATURE: -40° C to +85° C (-40° F to +185° F) SAFETY: UL 60950-1, EN 60950-1, CSA 22.2 No. 60950 EMC: FCC part 15 subpart C section 15.247, CISPR25, EN55022, EN55024, Industry Canada RSS210 Issue 8, CISPR 22 AUTOMOTIVE: ISO-10452, ISO-10605, SAE 1455, ISO 7637, J1113-2
Application/Usage	Vehicle Power System
