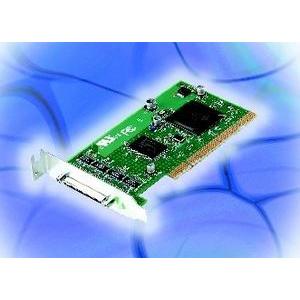

77000846 Digi AccelePort Xp 8-Port Multiport Serial Adapter

The AccelePort Xp Universal PCI (3.3V & 5V) cards are powerful, highly integrated 80 Mhz RISC processor-based products that deliver the highest level of intelligence and performance available on the market. The availability of 8 high-speed serial ports per card, the wide array of connector options, the small form factor, and the industry leading surge protection on each signal provides wide application flexibility.

General Information
Manufacturer	Digi International
Manufacturer Part Number	77000846
Manufacturer Website Address	http://www.digi.com
Brand Name	Digi
Product Line	AccelePort
Product Series	Xp
Product Name	AccelePort Xp 8-Port Multiport Serial Adapter
Product Type	Multiport Serial Adapter
Technical Information
Host Interface	PCI-X
Maximum Data Transfer Rate	7.20 Mbit/s
Protocols	RS-232
Platform Supported	PC
Interfaces/Ports
Number of SCSI Ports	1
Ports Expandability	8 x DB-25 RS-232 - Serial, Via Cable (Optional)
Ports Expandability	8 x DB-9 RS-232 - Serial, Via Cable (Optional)
Ports Expandability	8 x RJ-45 RS-232 - Serial, Via Cable (Optional)
Physical Characteristics
Form Factor	Plug-in Card
Height	2.5"
Width	4.7"
Thickness	725 mil
Weight (Approximate)	6 oz
Miscellaneous
Additional Information	Air movement: 30 CFM forced Bus mastering design reduces CPU utilization Hardware/software handshaking support
Compatibility	Supported Operating System: Microsoft Windows Server 2003 Microsoft Windows XP Microsoft Windows 2000 Microsoft Windows NT Microsoft Windows 9x/Me Linux Sun Solaris SPARC/Intel HP-UX AIX SCO OpenServer
Warranty
Limited Warranty	5 Year

The AccelePort Xp Universal PCI (3.3V & 5V) cards are powerful, highly integrated 80 Mhz RISC processor-based products that deliver the highest level of intelligence and performance available on the market. The availability of two to 16 high-speed serial ports per card, the wide array of connector options, the small form factor, and the industry leading surge protection on each signal provides wide application flexibility. The AccelePort Xp was designed to further enhance multi-user (retail point-of-sale, industrial control processing, data collection and office automation) implementations in a broad range of operating systems with an unrivaled feature set and excellent throughput of 921.6 Kbps, bi-directionally on each serial port.

Device Type	Serial adapter - 8 ports
Form Factor	Plug-in card - low profile
Interface (Bus) Type	PCI
PCI Specification Revision	PCI 2.3
Bus Voltage	Universal (3.3 V & 5.0 V)
Width	0.7 in
Depth	4.7 in
Height	2.5 in
Networking
Connectivity Technology	Wired
Data Link Protocol	RS-232
Data Transfer Rate	921.6 Kbps
Expansion / Connectivity
Interfaces	1 x serial - RS-232 - 68 pin HD D-Sub (HD-68)
Compatible Slots	1 x PCI - low-profile
Miscellaneous
Compliant Standards	FCC Class B certified, VCCI Class B ITE, EN 60950, EN55022, ICES-003, UL 1950, EN55024, CSA 22.2 No. 950
Software / System Requirements
OS Required	SCO OpenServer, IBM AIX, Microsoft Windows 95/98, SunSoft Solaris, HP-UX, Novell NetWare, Linux, Microsoft Windows NT, Microsoft Windows Millennium Edition, Microsoft Windows 2000 / XP, Microsoft Windows Server 2003
Manufacturer Warranty
Service & Support	5 years warranty
Service & Support Details	Limited warranty - 5 years
Environmental Parameters
Min Operating Temperature	50 °F
Max Operating Temperature	131 °F
Humidity Range Operating	5 - 90%
Max Altitude Operating	12140 ft
