Image may not reflect the actual item.
Price: $800.23
Quantity:
In Stock: 4
Last Updated: Mar 15, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 8262 010U500 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |

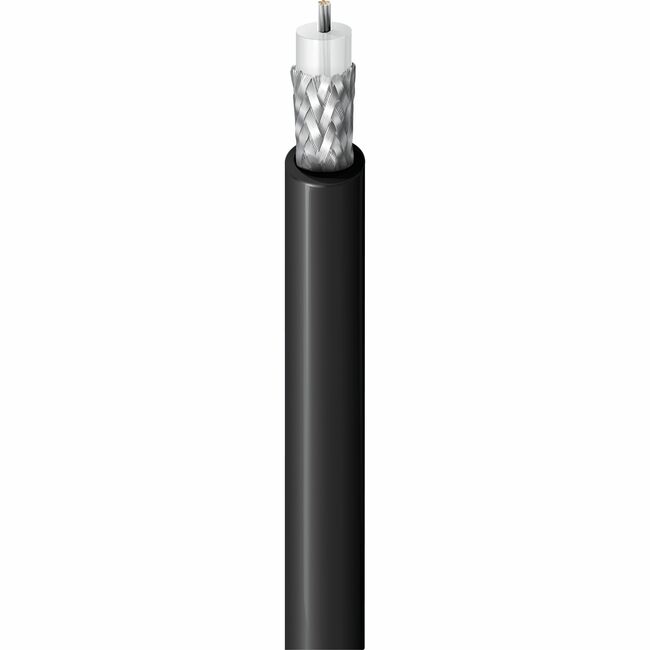

| Product Name | Coaxial Antenna Cable |
| Product Type | Antenna Cable |
| Technical Information | |
| Cable Type | Coaxial |
| Cable Length | 500 ft |
| Connector Type on First End | RG-58 Bare Wire |
| Connector Type on Second End | RG-58 Bare Wire |
| Shielding | Yes |
| Jacket Type | CMG |
| Jacket Type | CMX |
| Jacket Type | CM |
| Device Supported | Two-way Radio |
| Device Supported | Wireless Microphone |
| Device Supported | GPS |
| Device Supported | Ham/Amateur Radio |
| Device Supported | RFID Reader |
| Device Supported | Antenna |
| American Wire Gauge | 20 AWG |
| Features | Braided |
| Features | Bendable |
| Features | Stranded |
| Physical Characteristics | |
| Product Color | Black |
| Insulation Color | White |
| Product Material | Tinned Copper |
| Product Material | Polyethylene |
| Insulation Material | Polyethylene |
| Shielding Material | Tinned Copper Braid |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details |
|
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances 2 (China RoHS 2) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| General Information | |
| RG Type | RG-58/U |
| Impedance | 50 Ohms |
| Wire Gauge - AWG | 20 |
| Conductor Material | Tinned Copper |
| Stranding | 19 x 33 |
| Length | 500 ft |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Outside Diameter | 0.195 in |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
