BELDEN
BELDEN 3632 009A1000 Multi-Paired Cables 23AWG 4PR SOLID 1000ft SPOOL WHITE
Mfg Part Number: 3632 009A1000 , Item #: 2320801

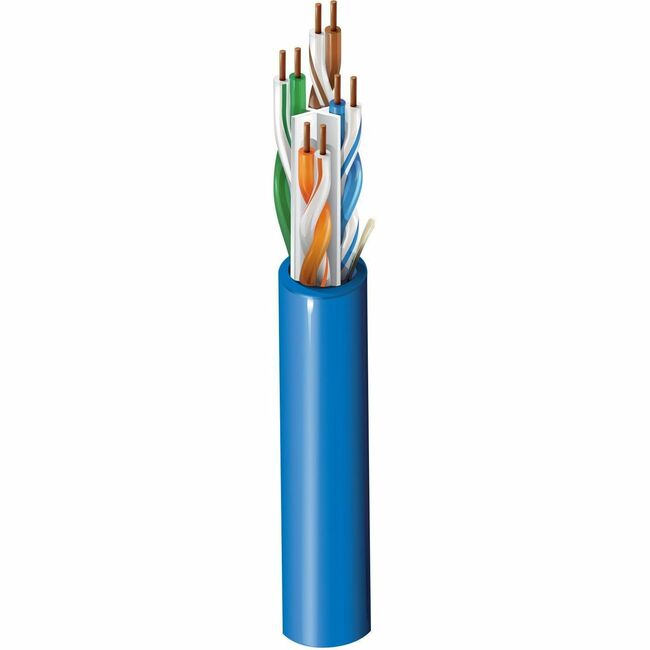

Image may not reflect the actual item.
Price: $900.20
Quantity:
More to Come
Last Updated: Oct 04, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 3632009A1000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | Category 6+ Premium Cable, 4 Bonded-Pairs, U/UTP, CMR |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6+ |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | No |
| Jacket Type | Riser |
| Jacket Type | CMR-LP |
| Jacket Type | CL3R-LP |
| Jacket Type | FT4 |
| Jacket Type | CMR |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Conductors | 4 |
| Number of Pairs | 4 |
| Features | Power-sum Equal Level Far-End Crosstalk (PSELFEXT) |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | PoE+ |
| Features | Attenuation to Crosstalk Ratio (ACR) |
| Features | Power Sum Attenuation to Crosstalk Ratio (PSACR) |
| Features | PoE++ |
| Features | PoE |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | Attenuation Crosstalk Ratio Far-end (ACR-F) |
| Features | Stranded |
| Features | Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF) |
| Features | Bendable |
| Features | Equal Level Far End Crosstalk (ELFEXT) |
| Physical Characteristics | |
| Product Color | White |
| Jacket Color | White |
| Insulation Color | White/Brown Stripe and Brown |
| Insulation Color | White/Blue Stripe and Blue |
| Insulation Color | White/Green Stripe & Green |
| Insulation Color | White/Orange Stripe and Orange |
| Product Material | Bare Copper |
| Insulation Material | Polyolefin |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | Bare Copper - Conductors |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| General Information | |
| Type | Cat 6 |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Wire Gauge - AWG | 23 AWG |
| Stranding | Solid |
| Conductor Material | Copper |
| Outside Diameter | 6 mm |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Length | 1000 ft |
| Shielding | Unshielded |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
