BELDEN
BELDEN 2412 008U1000 Multi-Paired Cables 23AWG 4PR SOLID 1000ft BOX GRAY
Mfg Part Number: 2412 008U1000 , Item #: 2313740

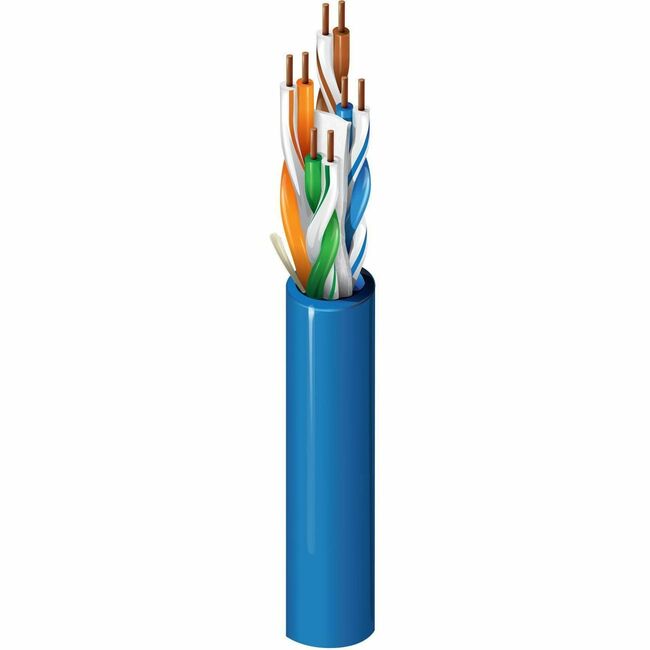

Image may not reflect the actual item.
Price: $693.10
Quantity:
More to Come
Last Updated: Jan 30, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 2412008U1000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMR |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6+ |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | No |
| Cable Listing | CMR |
| Jacket Type | CMR |
| Jacket Type | Riser |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Pairs | 4 |
| Features | Power Sum Attenuation to Crosstalk Ratio (PSACR) |
| Features | Stranded |
| Features | Equal Level Far End Crosstalk (ELFEXT) |
| Features | Attenuation Crosstalk Ratio Far-end (ACR-F) |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | Attenuation to Crosstalk Ratio (ACR) |
| Features | Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF) |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | Power-sum Equal Level Far End Crosstalk Loss (PSELFLEXT) |
| Features | PoE+ |
| Features | PoE++ |
| Features | PoE |
| Physical Characteristics | |
| Color Family | Gray |
| Product Color | Gray |
| Insulation Color | White/Blue Stripe and Blue |
| Insulation Color | White/Brown Stripe and Brown |
| Insulation Color | White/Orange Stripe and Orange |
| Insulation Color | White/Green Stripe & Green |
| Product Material | Bare Copper |
| Insulation Material | Polyolefin |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | Bare Copper - Conductor |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | China Restriction of Hazardous Substances 2 (China RoHS 2) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| General Information | |
| Type | Cat 6 |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Wire Gauge - AWG | 23 AWG |
| Stranding | Solid |
| Conductor Material | Copper |
| Outside Diameter | 5.58 mm |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Length | 1000 ft |
| Shielding | Unshielded |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
