Image may not reflect the actual item.
Price: $1,912.16
Quantity:
More to Come
Last Updated: Jun 25, 2025
No Sales Tax except these states
, PO and Wire.

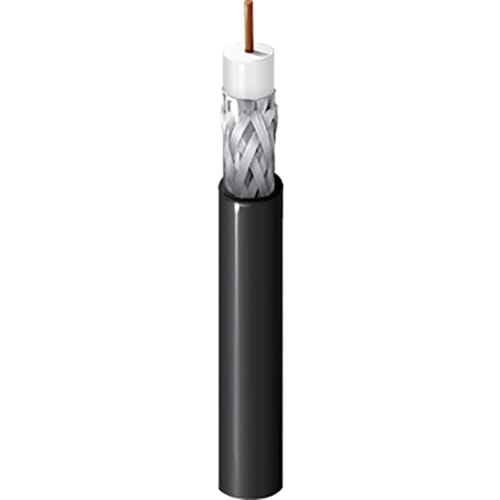

30 AWG stranded (7x38) .012" tinned copper conductors, foam HDPE insulation, tinned copper serve shield (90% coverage), PVC jacket.
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1807A B591000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | 1807A Coax - High-Flex S-Video Cable |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | Coaxial |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Shielding | Yes |
| Device Supported | Video Device |
| American Wire Gauge | 30 AWG |
| Features | Stranded |
| Features | Zip Cord |
| Physical Characteristics | |
| Product Color | Matte Black |
| Weight (Approximate) | 15 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| General Information | |
| RG Type | High Flex S Video |
| Impedance | 75 Ohms |
| Wire Gauge - AWG | 30 |
| Conductor Material | Tinned Copper |
| Stranding | 7 x 38 |
| Length | 1000 ft |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Outside Diameter | 0.110 in x 0.230 in |
