BELDEN

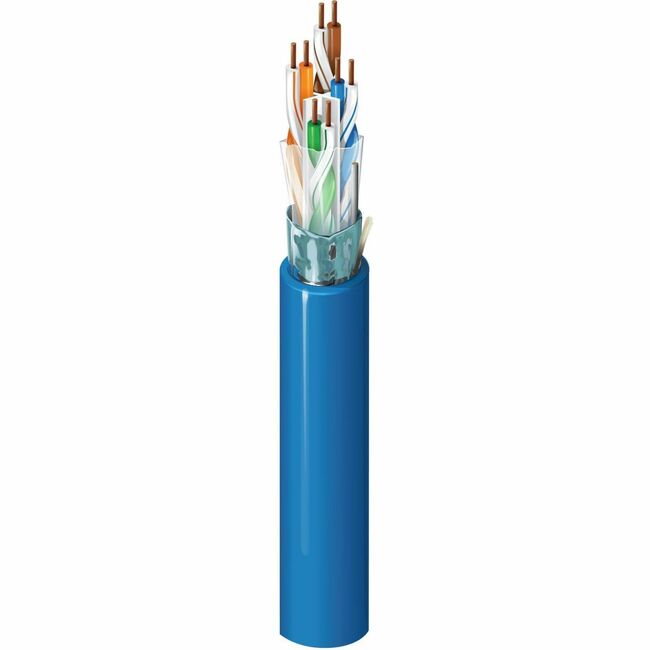

BELDEN 2413 D151000 Multi-Paired Cables 23AWG 4PR UNSHLD 1000ft SPOOL BLUE
Mfg Part Number: 2413 D151000 , Item #: 2304650
Image may not reflect the actual item.
Price: $1,264.81
Quantity:
More to Come
Last Updated: Apr 20, 2026
No Sales Tax except these states
, PO and Wire.
Category 6+ Enhanced Premise Horizontal Cable (350MHz), 4 Pair, 23 AWG Solid Bare Copper Conductors, U/UTP, Plenum-CMP, Flamarrest® PVC-LS Jacket
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 2413 D151000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | 2413 Category 6+ Enhanced Cable, 4 Pair, U/UTP, CMP |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6+ |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | No |
| Jacket Type | CMP |
| Jacket Type | CL3P-LP |
| Jacket Type | CL3P |
| Jacket Type | Plenum |
| Jacket Type | CMP-LP |
| Jacket Type | FT6 |
| Device Supported | Network Device |
| American Wire Gauge | 23 AWG |
| Data Transfer Rate | 1 Gbit/s |
| Number of Conductors | 4 |
| Number of Pairs | 4 |
| Features | Equal Level Far End Crosstalk (ELFEXT) |
| Features | Attenuation Crosstalk Ratio Far-end (ACR-F) |
| Features | Power-sum Near End Crosstalk (PSNEXT) |
| Features | Attenuation to Crosstalk Ratio (ACR) |
| Features | Power Sum Attenuation to Crosstalk Ratio (PSACR) |
| Features | Power-sum Equal Level Far-End Crosstalk (PSELFEXT) |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | Bendable |
| Features | PoE++ |
| Features | PoE+ |
| Features | PoE |
| Features | Power Sum Attenuation to Crosstalk Ratio, Far-End (PSACRF) |
| Physical Characteristics | |
| Color Family | Blue |
| Product Color | Blue |
| Insulation Color | White/Green |
| Insulation Color | Brown |
| Insulation Color | White/Blue |
| Insulation Color | Orange |
| Insulation Color | White/Brown |
| Insulation Color | Green |
| Insulation Color | Blue |
| Insulation Color | White/Orange |
| Product Material | Bare Copper |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Insulation Material | Polyolefin |
| Jacket Material | Flamarrest |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Jacket Material | Low Smoke Polyvinyl Chloride (LS PVC) |
| Material Details | Bare Copper - Conductor |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | China Restriction of Hazardous Substances 2 (China RoHS 2) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| General Information | |
| Type | Cat 6 |
| Number of Conductors | 8 |
| Number of Pairs | 4 |
| Wire Gauge - AWG | 23 AWG |
| Stranding | Solid |
| Conductor Material | Copper |
| Outside Diameter | 5.72 mm |
| Jacket Material | Low Smoke Polyvinyl Chloride (LS PVC) |
| Length | 1000 ft |
| Shielding | Unshielded |
