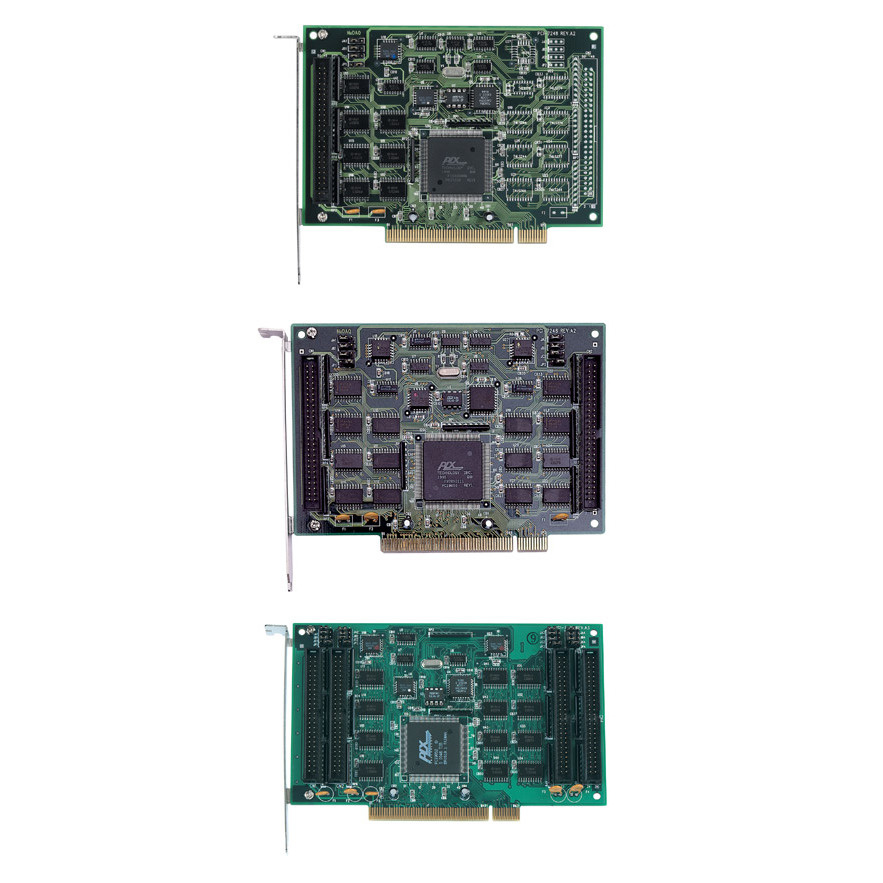

ADLINK Technology PCI-7296 96-bit Digital I/O Card

• Supports a 32-bit 5 V PCI bus
• 96-CH digital TTL/DTL inputs/outputs (PCI-7296)
• 48-CH digital TTL/DTL inputs/outputs (PCI-7248)
• 24-CH digital TTL/DTL inputs/outputs (PCI-7224)
• Emulates 4/2/1 industry standard 8255 PPI (mode 0)
• Direct interface with OPTO-22 compatible I/O modules
• Output status read back
• On-board 8254 timer/counter chip

ADLINK PCI-7296/7248/7224 are high-density parallel digital I/O boards with 96/48/24 I/O channels. The header connectors are fully compatible with industry Opto-22 standard. Therefore, PCI-7296/48/24 can utilize the Opto-22 external devices. The PCI-7296/7248/7224 devices emulate mode 0 of the industry standard 8255 programmable peripheral interface (PPI) chips. The PCI-7296/7248/7224 provides 4/2/1 PPI chips respectively. Each PPI offers three 8-bit ports, Port A, Port B and Port C. The Port C is divided into 2 nibble-wide (4-bit) ports. The PCI-7296/7248/7224 devices have programmable timer/counters. One 16-bit counter is available for event counting, while the other 32- bit timer is available for timed interrupt generation. The PCI-7296/7248/7224 devices provide multiple programmable interrupt sources from DIO channels, as well as the output of the timer.
