ADLINK Technology

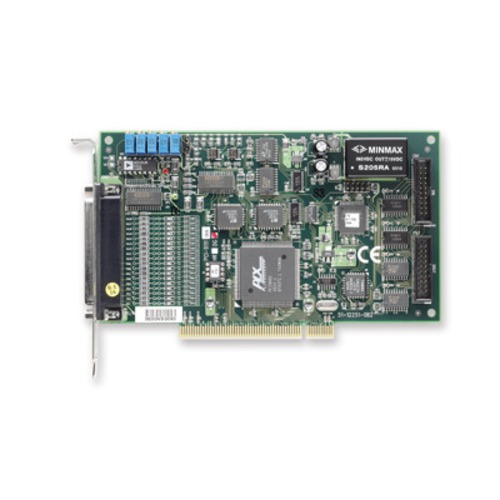

ADLINK Technology PCI-9111DG 100K S/s, 12 bit Multi- function card

Mfg Part Number:  PCI-9111DG
Image may not reflect the actual item.
Price: $610.06
Quantity:
Status: Active
No Sales Tax except these states
, PO and Wire.
Manufacturer Warranty Policy:

Features

  • Supports a 32-bit 5 V PCI bus
  • 12-bit A/D resolution (PCI-9111DG)
  • 16-bit A/D resolution (PCI-9111HR)
  • 16-CH single-ended analog inputs
  • Up to 100 kS/s sampling rate
  • On-board 1 k-sample A/D FIFO
  • Programmable gains of x1, x2, x4, x8, x16
  • Bipolar analog input ranges

    Introduction

    ADLINK PCI-9111 series are 16-CH, 100 kS/s low cost multi-function DAQ card. The PCI-9111 series feature flexible configurations on analog inputs. A RC filter is implemented on each A/D input channel for user to attenuate or filter input signal. The PCI-9111 series provide analog inputs with 5 programmable input ranges for bipolar inputs. The PCI-9111 series also support automatic analog input scanning. PCI-9111DG provides 12-bit A/D resolution while PCI-9111HR provides 16-bit A/D resolution. The PCI-9111 series also feature 1-CH 12-bit analog output, 16-CH TTL digital inputs and 16-CH TTL digital outputs. ADLINK PCI-9111 series deliver cost-effective and reliable data acquisition capabilities, and is ideal for a broad variety of applications.

    • If you need accessory information for this product, please use our Online Contact Us Form , our industrial sales team is here to help you find the accessories.
