BELDEN
BELDEN 1325A 009500 Multi-Paired Cables 22AWG 2PR SHIELD 500ft SPOOL WHITE
Mfg Part Number: 1325A 009500 , Item #: 2296976
Image may not reflect the actual item.
Price: $476.29
Quantity:
In Stock: 13
Last Updated: Jun 21, 2025
No Sales Tax except these states
, PO and Wire.

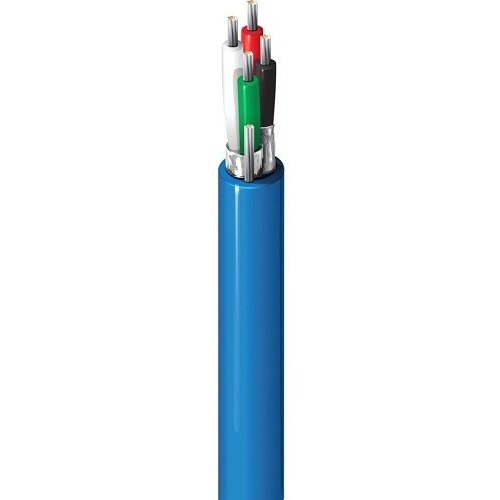

Security & Commercial Audio Cable, Plenum-CMP, 2-22 AWG stranded tinned copper pairs with Flamarrest® insulation, individually shielded with Beldfoil® shield, Flamarrest® jacket
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1325A 009500 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | 1325A Multi-Conductor - Double-Pair Cable |
| Package Type | Bulk |
| Product Type | Audio Cable |
| Technical Information | |
| Cable Type | Bare Wire |
| Cable Length | 500 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Connector on Second End Details | Bare Wire |
| Shielding | Yes |
| Jacket Type | Plenum |
| Jacket Type | CMP |
| Device Supported | Security System |
| Device Supported | Audio Device |
| Device Supported | Sound System |
| Device Supported | Control System |
| American Wire Gauge | 22 AWG |
| Number of Pairs | 2 |
| Features | Stranded |
| Features | Bendable |
| Physical Characteristics | |
| Product Color | White |
| Product Material | Low Smoke Polyvinyl Chloride (LS PVC) |
| Product Material | Tinned Copper |
| Insulation Material | Flamarrest |
| Shielding Material | Aluminum-polyester Foil |
| Shielding Material | Beldfoil |
| Material Details |
|
| Miscellaneous | |
| Environmentally Friendly | Yes |
| General Information | |
| Type | Analog Multi-Pair Flex |
| Number of Conductors | 4 |
| Number of Pairs | 2 |
| Wire Gauge - AWG | 22 AWG |
| Stranding | 7 x 30 |
| Conductor Material | Tinned Copper |
| Outside Diameter | 5 mm |
| Jacket Material | Low Smoke Polyvinyl Chloride (LS PVC) |
| Length | 500 ft |
| Shielding | Shielded |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
