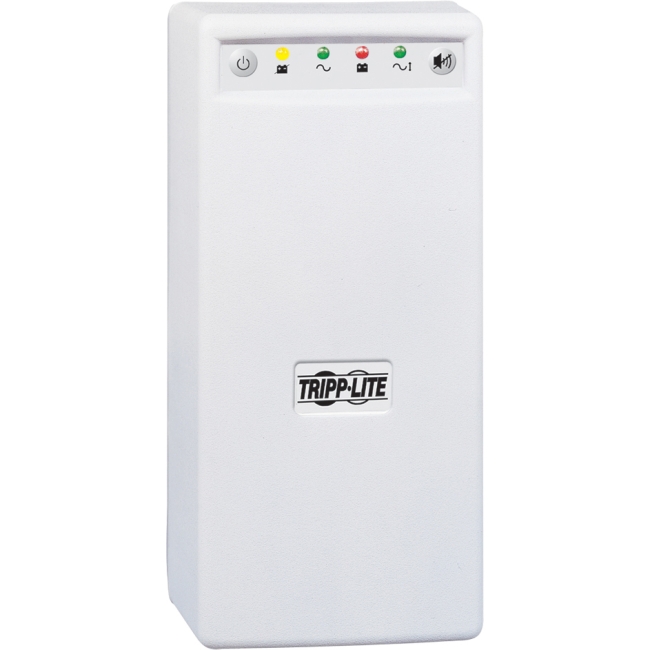

OMNISMART350HG Tripp Lite OmniSmart 350HG UPS

Tripp Lite's OMNI SMART 350HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. Hospital-grade plug & outlets, plus built-in isolation transformer with Faraday shield offers full isolation and removes common mode noise. UL 60601-1 listed as medical electrical equipment. 330VA power handling capacity supports computers, inter-networking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 83V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in DB-9 communications port that works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	OMNISMART350HG
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	OmniSmart
Product Name	OmniSmart 350HG UPS
Product Type	Line-interactive UPS
Technical Information
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	4 x NEMA 5-15R
Cord Length	6 ft
Power Description
Load Capacity (VA)	330 VA
Load Capacity (Watt)	225 W
Input Voltage	110 V AC
Output Voltage	120 V AC
Management
Network Management	SNMP Manageable
Alarm	On Battery
Controls/Indicators
Status Indicators	Includes 4 front-panel status indicator LEDs for line power, battery power, voltage regulation and battery low/replace status
Battery Information
Battery Chemistry	Lead Acid
Backup/Run Time (Full Load)	18 Minute
Backup/Run Time (Half Load)	46 Minute
Battery Life	6 Year
Typical Battery Recharge Time	4 Hour
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Physical Characteristics
Height	10.5"
Width	7.5"
Depth	4.8"
Form Factor	Tower
Weight (Approximate)	25 lb
Miscellaneous
Package Contents	OmniSmart 350HG UPS OMNI SMART 350HG Hospital Grade UPS System Serial cable for remote monitoring Warranty information Instruction manual
Additional Information	Ideal UPS protection for applications in medical patient-care areas where UL2601-1 listed electrical medical equipment is required Maintains less than 300 microamps leakage current for UPS and all connected equipment Line-interactive voltage regulation corrects brownouts as low as 83V without using battery power Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections Full line isolation prevents shock potential and operational problems in sensitive electronic equipment Resistant to electrostatic discharge Supports loads up to 330VA / 225 watts 46 minutes half load runtime (with 165VAload), 18 minutes full load runtime (with 330VA load) 4 protected hospital-grade outlets; 6-ft. cord 1-DB9 serial port for network interface; SNMP compatible Complete surge protection, line isolation and EMI/RFI noise filtering 2 phone line surge suppression for modems, fax machines and other phone accessories 2 year product warranty Complete remote monitoring cabling included, PowerAlert UPS managment software available via free download 4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace Battery replacement door Grounding lug
Certifications & Standards	UL1778 (USA, Series AGOM350KSR57HG), UL2601-1 (Medical), cUL (Canada), FCC Class B (emissions), FCC Part 68 / Industry of Canada (telecommunications), Conforms to IEEE 587 / ANSI C62.41 specifications
Country of Origin	China
Warranty
Limited Warranty	2 Year

General Information
Power Rating	330 VA
Output Voltage Rating	120 V
Number of Outputs	3
Runtime-Full Load	18 min
Runtime-Half Load	46 min

Tripp Lite's OMNI SMART 350HG offers medical-grade UPS protection with built-in line interactive voltage regulation, intelligent monitoring and unattended shutdown capability. Hospital-grade plug & outlets, plus built-in isolation transformer with faraday shield offers full isolation and removes common mode noise. UL 60601-1 listed as medical electrical equipment with less than 300 microamps cumulative leakage current for the UPS and all connected equipment. 330VA power handling capacity supports computers, internetworking equipment and other critical loads during commercial power failures. Line interactive voltage regulation corrects brownouts as low as 83V back to normal 120V levels, saving battery reserves for use only during complete power failures. Includes, 2 line phone surge suppression and built-in DB-9 communications port that works with PowerAlert Software and cabling to provide automatic unattended shutdown of connected network and PC applications.

Features:

• Ideal UPS protection for applications in medical patient-care areas where UL 60601-1 listed electrical medical equipment is required


• Maintains less than 300 microamps leakage current for UPS and all connected equipment


• Line-interactive voltage regulation corrects brownouts as low as 83V without using battery power


• Hospital-grade plug and outlets offer added degree of safety and reliability to input/output connections


• Full line isolation prevents shock potential and operational problems in sensitive electronic equipment


• Resistant to electrostatic discharge


• Supports loads up to 330VA / 225 watts


• 46 minutes half load runtime (with 165VAload), 18 minutes full load runtime (with 330VA load)


• 4 protected hospital-grade outlets; 6-ft. cord


• 1-DB9 serial port for network interface; SNMP compatible


• Complete surge protection, line isolation and EMI/RFI noise filtering


• 2 phone line surge suppression for modems, fax machines and other phone accessories


• 2 year product warranty


• Complete remote monitoring cabling included, PowerAlert UPS managment software available via free download


• 4 diagnostic LEDs indicate AC present, on battery, voltage correction & battery low/replace


• Battery replacement door


• Grounding lug


Applications:

Ideal UPS for protection of patient point of care solutions, wireless communications systems, electronic prescribing applications, medical imaging, telemedicine and laboratory equipment. UL 60601-1 listing provides ultimate safety and reliability for computer equipment used in patient care areas and mission critical equipment. (Not recommended for life support applications.)

Specifications:

SYSTEM OVERVIEW
System overview:	Medical Grade tower line interactive UPS system includes built-in isolation transformer with faraday shield, line interactive voltage regulation, high quality hospital-grade plug and outlets. AC surge suppression, DB9 communications port and two line TEL/DSL modem protection. UL2601-1 listed as medical electrical equipment with less than 300 microamps cumulative leakage current for UPS and all connected loads.
Voltage compatibility:	120 V AC
Frequency compatibility:	60 Hz.
OUTPUT
Output volt amp capacity (VA):	330
Output watt capacity (watts):	225
Output nominal voltage:	120V Nominal
Output voltage regulation:	LINE MODE: Sine wave line voltage 120V (-18% / +8%) BATTERY MODE: PWM sine wave output 120V +/-5%
Output frequency regulation:	LINE MODE: Passes line frequency of 60Hz. +/-10% BATTERY MODE: Inverter output regulated to 60Hz +/-0.5Hz
Outlet quantity / type:	4 NEMA 5-15R HG
INPUT
Maximum input amps:	2.3A / 250 watts
Input connection type:	NEMA 5-15P Hospital-Grade
Input cord length:	6 ft, 14 gauge
Recommended electrical service:	15A 120V
BATTERY
Full load runtime:	18 minutes (330VA)
Half load runtime:	46 minutes (165VA)
DC system voltage:	12 VDC
Typical battery lifespan:	3-6 years, depending on usage
Battery recharge rate:	2-4 hours to 90%
Replacement Battery Cartridge:	RBC52 (quantity 2)
VOLTAGE REGULATION
Voltage regulation description:	Line interactive UPS offers a single boost level of brownout correction to maintain usable, computer grade output.
Direct pass through:	Input voltages between 108 and 147V AC are passed through unchanged
Brownout correction:	Input voltages between 83 and 107V AC are boosted by 14%
LEDS ALARMS & SWITCHES
Front panel LEDs:	Yes, includes 4 front-panel status indicator LEDs for line power, battery power, voltage regulation and battery low/replace status
Alarms:	Audible alarm indicates power failure conditions, silenceable via alarm cancel switch. Once cancelled, alarm will resume when approximately 2 minutes of battery operation remain (assuming full load).
Switches:	Yes, includes 2 front panel mounted push-button switches for system enable, self-test and alarm cancel functions
SURGE / NOISE SUPPRESSION
AC suppression response time:	Instantaneous
Dataline suppression:	2-Line Tel/DSL
EMI / RFI AC noise suppression:	Yes
PHYSICAL
Shipping weight (lbs):	26.5
Shipping weight (kg):	12.0
Unit weight (lbs):	25
Unit weight (kg):	11.4
Unit Dimensions (HWD/in):	10.75 x 5.25 x 7.25
Unit Dimensions (HWD/cm):	27.3 x 13.3 x 18.4
Material of construction:	PVC
Form factors supported:	Tower
Cooling method:	Convection
Battery Access:	Battery access door allows hot swap battery replacement without powering connected equipment off
ENVIRONMENTAL
Operating Temperature:	+32 to +104 degrees Fahrenheit 0 to +40 degrees Celsius
Storage Temperature:	+5 to +122 degrees Fahrenheit -15 to +50 degrees Celsius
Relative Humidity:	0 to 95%, non-condensing
COMMUNICATIONS
Network monitoring port:	DB9
Software and cabling included:	Ships with DB9 cable, PowerAlert software available via free download from www.tripplite.com
LINE / BATTERY TRANSFER
Transfer time from line power to battery mode:	2-4 milliseconds
Low voltage transfer to battery power:	83V (resets to line power as voltage increases to 87V)
High voltage transfer to battery power:	147V (resets to line power as voltage decreases to 143V)
CERTIFICATIONS
Certifications:	UL1778 (USA, Series AGOM350KSR57HG), UL2601-1 (Medical), cUL (Canada), Class B (emissions), FCC Part 68 / Industry of Canada (telecommunications)
WARRANTY
Optional coverage:	3 year, 5 year, next day and on-site warranty coverage available
Product warranty:	2 year product warranty
SPECIAL FEATURES
Cold Start:	Yes, inverter can be "cold started" to enable temporary AC output during a power failure
Appearance:	Attractive gray tower UPS
