IBAR12/20T Tripp Lite IBAR12-20T

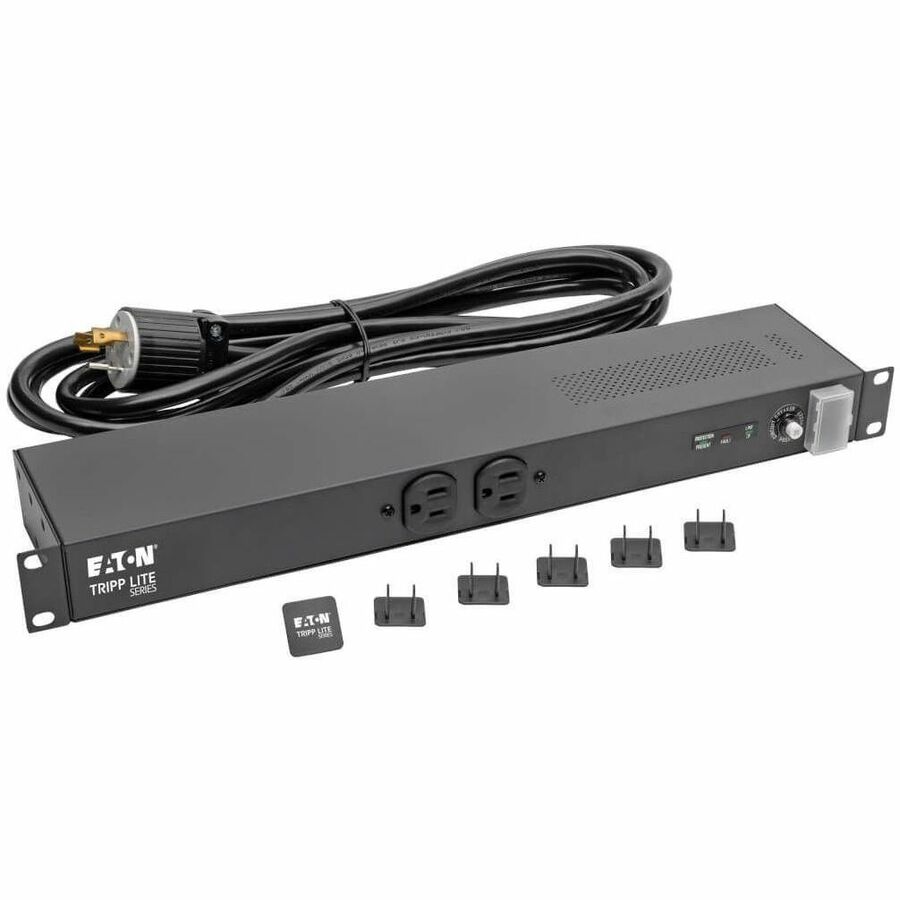

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20-amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15-amp/10 rear mounted 20- amp), 15 ft. power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	IBAR12-20T
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Name	IBAR12-20T
Product Type	Surge Suppressor/Protector
Technical Information
Plug/Connector Type	Yes
Receptacles	12 x NEMA 5-20R
Protection Type	Surge
Power Description
Input Voltage	120 V AC
Output Voltage	120 V AC
Maximum Line Current	20 A
Surge Energy Rating	3840 J
Controls/Indicators
Status Indicators	Line fault Line OK Protection present
Physical Characteristics
Power Cord/Cable Length	15 ft
Height	1.8"
Width	17.5"
Depth	4"
Weight (Approximate)	5.40 lb
Miscellaneous
Package Contents	IBAR12-20T IBAR12-20T Surge Suppressor Warranty information Instruction manual
Additional Information	Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks) 1280 joules / 60,000 amp network-grade AC surge suppression with EMI/RFI filtering 12 output receptacles outlets (2 front mounted NEMA 5-15R / 10 rear mounted NEMA 5-20R) 15 foot AC cord with NEMA L5-20P straight-in plug connection Diagnostic LEDs confirm proper wiring and suppressor operation Front panel switch controls power to all outlets 20 amp electrical capacity with circuit breaker 120VAC, 50/60Hz electrical compatibility $25,000 Ultimate Lifetime Insurance (USA & Canada Only) Lifetime product warranty
Compatibility	TYPICAL APPLICATIONS: Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio / video, security, sound reinforcement and more.
Certifications & Standards	UL1449 (UR status), UL1283, cUL, Exceeds IEEE 587 category A&B specifications
Country of Origin	China
Warranty
Limited Warranty	Lifetime

Tripp Lite's IBAR12-20T offers network-grade surge and noise suppression in a versatile all-metal multi-mount cabinet with L5-20P twist-lock input plug and 20 amp capacity. Detachable mounting flanges are configurable for rackmount, wallmount and under-counter installation. Uses only 1 rack space (1U) when installed in any 19 inch EIA standard rack. Features network grade AC surge suppression with EMI/RFI noise filtering. Outlets are arranged in exclusive isolated filter banks to limit noise interaction among connected items. Includes 12 outlets (2 front mounted 15 amp / 10 rear mounted 20 amp), 15 ft power cord and power switch. Diagnostic LEDs indicate AC present, line fault and protection status.

Features:
Versatile all-metal cabinet with detachable mounting flanges allows rackmount, wallmount, undercounter and other creative mounting options
Uses one rack space (1U) in standard 19 inch rack ("zero U" mounting possible in many racks)
750 joules / 60,000 amp network-grade AC surge suppression with EMI/RFI filtering
12 output receptacles outlets (2 front mounted NEMA 5-15R / 10 rear mounted NEMA 5-20R)
15 foot AC cord with NEMA L5-20P straight-in plug connection
Diagnostic LEDs confirm proper wiring and suppressor operation
Front panel switch controls power to all outlets
20 amp electrical capacity with circuit breaker
120VAC, 50/60Hz electrical compatibility
$25,000 Ultimate Lifetime Insurance
Lifetime product warranty

Typical Applications:
Ideal for the protection of sensitive electronic equipment in 19 inch rackmount, wallmount and under-counter applications, such as internetworking equipment, PC systems, telecommunications, audio/video, security, sound reinforcement and more.

Package Includes:
IBAR12-20T Surge Suppressor
Warranty information
Instruction manual
