Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1505A 0101000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |

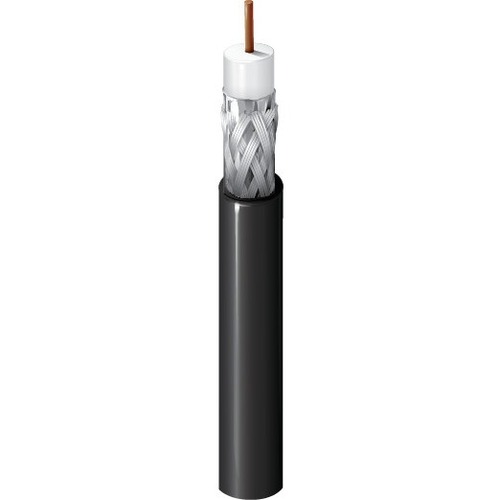

| Product Name | 75 Ohm SDI Coax, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jkt, CMR |
| Package Type | Bulk |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | Coaxial |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector Type on Second End | Bare Wire |
| Shielding | Yes |
| Jacket Type | CMG |
| Jacket Type | CMR |
| Device Supported | Video Device |
| American Wire Gauge | 20 AWG |
| Data Transfer Rate | 6 Gbit/s |
| Supported Resolution | 1920 x 1080 |
| Features | UV Resistant |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Bare Copper |
| Insulation Material | Polyethylene Foam |
| Shielding Material | Duofoil |
| Shielding Material | Aluminum/Polyester |
| Shielding Material | Tinned Copper Braid |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | Bare Copper - Conductor |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| General Information | |
| RG Type | RG-59/U |
| Impedance | 75 Ohms |
| Wire Gauge - AWG | 20 |
| Conductor Material | Copper |
| Stranding | Solid |
| Length | 1000 ft |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Outside Diameter | 0.233 in |
