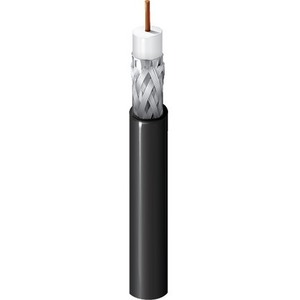

75 Ohm SDI Coax, RG-59, 20 AWG Solid Bare Copper Conductor, FEP Insulation, Foil + 95% Tinned Copper Braid Shield, PVC Jacket, CMP
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1506A 0101000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | 75 Ohm SDI Coax, RG-59, 20 AWG Solid BC, Foil + 95% TC Braid, PVC Jacket, CMP |
| Package Type | Bulk |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | Coaxial |
| Cable Length | 1000 ft |
| Connector Type on First End | Bare Wire |
| Connector on First End Details | Bare Wire |
| Shielding | Yes |
| Jacket Type | CMP |
| Jacket Type | FT6 |
| Jacket Type | Plenum |
| Device Supported | Video Device |
| Device Supported | HDTV |
| American Wire Gauge | 20 AWG |
| Supported Resolution | 1920 x 1080 |
| Features | Flame Retardant |
| Physical Characteristics | |
| Product Color | Black |
| Product Material | Bare Copper |
| Insulation Material | Fluorinated Ethylene Propylene (FEP) |
| Shielding Material | Duofoil |
| Shielding Material | Tinned Copper Braid |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Material Details | Bare Copper - Conductor |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances 2 (China RoHS 2) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| General Information | |
| RG Type | RG-59/U |
| Impedance | 75 Ohms |
| Wire Gauge - AWG | 20 |
| Conductor Material | Copper |
| Stranding | Solid |
| Length | 1000 ft |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Outside Diameter | 0.196 in |
