CISCO

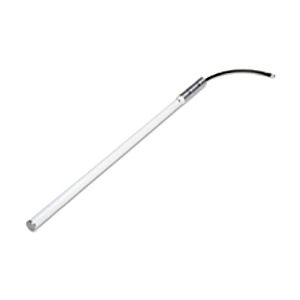

AIR-ANT24120 Cisco Aironet Omnidirectional Antenna

Mfg Part Number:  AIR-ANT24120
Image may not reflect the actual item.
Price: $509.59 + Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 27, 2025
No Sales Tax except these states
, PO and Wire.

This antenna operates in the 2400-2500 MHz band and is designed for use outdoors. The antenna is compatible with Cisco Aironet radio products utilizing a reverse-polarity threaded naval connector (RP-TNC) connector.

Main Specification
General Information
Manufacturer Cisco Systems, Inc
Manufacturer Part Number AIR-ANT24120
Manufacturer Website Address http://www.cisco.com
Brand Name Cisco
Product Line Aironet
Product Model AIR-ANT24120
Product Name Aironet Omnidirectional Antenna
Product Type Antenna
Technical Information
Directivity Omni-directional
Maximum Antenna Range 15.8 Mile
Frequency Band Type UHF
Operating Frequency Range 2.4 GHz to 2.5 GHz
Antenna Gain 12 dB
Impedance 50 Ohm
Polarization Linear Vertical/Vertical
Survival Wind Speed 2200 in/s
Cable Length 1 ft
Interfaces/Ports
Connector Type RP-TNC
Physical Characteristics
Height 42"
Width 1.25"
Diameter 1.50"
Weight (Approximate) 1.50 lb
Miscellaneous
Application/Usage Wireless Data Network
Package Contents
  • Aironet 12 dBi High Gain Omnidirectional Antenna
  • Antenna grooves
  • Jam nuts
  • 5/16 x 18 U-bolt
  • Sandcast bracket
  • 1/4-20 hex bolts
  • 5/16-18 hex nut
Additional Information

All range estimations are based on use of a BR 1310 access point and the same type of antenna at each end of the connection under ideal outdoor conditions. The distances referenced here are approximations and should be used for estimation purposes only.

  • Application: Outdoor midrange point-to-multipoint applications
  • Wind Rating: 125 MPH
Compatibility
  • Cisco Aironet 2.4 GHz Bridge
Warranty
Limited Warranty 1 Year
This antenna operates in the 2400-2500MHz band and is designed for use outdoors. The antenna is compatible with Cisco Aironet radio products utilizing a reverse-polarity threaded naval connector (RP-TNC) connector.

Connector Cables

$582.23
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
