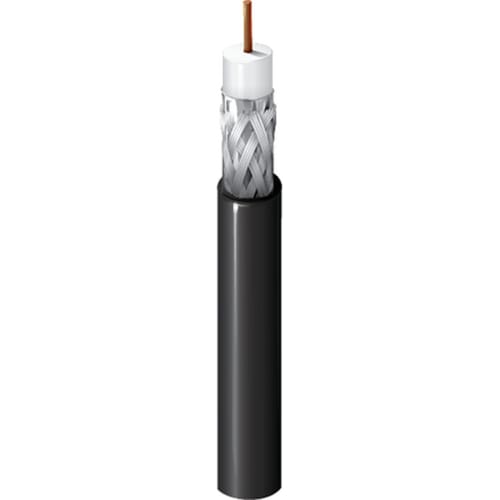

20 AWG solid .032" bare copper conductor, gas-injected foam HDPE insulation, Duofoil® + tinned copper braid shield (95% coverage), PVC jacket.
Main Specification
| General Information | |
| Manufacturer | Belden CDT, Inc |
| Manufacturer Part Number | 1505A 0021000 |
| Manufacturer Website Address | http://www.belden.com |
| Brand Name | Belden |
| Product Name | 1505A Coax - RG-59/U Type |
| Packaged Quantity | 1 |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | Coaxial |
| Cable Length | 1000 ft |
| Connector Type on First End | RG-59/U Bare Wire |
| Connector on First End Details | RG-59/U Bare Wire |
| Connector Type on Second End | RG-59/U Bare Wire |
| Connector on Second End Details | RG-59/U Bare Wire |
| Shielding | Yes |
| Device Supported | Video Device |
| Device Supported | HDTV |
| American Wire Gauge | 20 AWG |
| Data Transfer Rate | 6 Gbit/s |
| Supported Resolution | 1920 x 1080 |
| Physical Characteristics | |
| Product Color | Red |
| Weight (Approximate) | 31 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| General Information | |
| RG Type | - |
| Impedance | - |
| Wire Gauge - AWG | - |
| Conductor Material | - |
| Stranding | - |
| Length | 1000 ft |
| Jacket Material | - |
| Outside Diameter | - |
