DELTA AFB0948HH DC Fan, 92 x 92 x 25.4mm, 3.84W 48VDC 0.08A, 3200rpm, 57.9CFM, 38dBA, BB, 2 wire leads, Plastic Frame /Blade, Op: -10 ~ 70°C
Mfg Part Number: AFB0948HH , Item #: 2245084
Special Note: Jan 31, 2016
MOQ=72

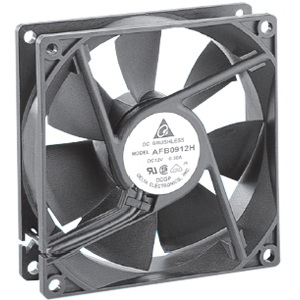

Image may not reflect the actual item.
Price: $89.30
Quantity:
More to Come
Last Updated: Dec 07, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Delta Electronics, Inc |
| Manufacturer Part Number | AFB0948HH |
| Manufacturer Website Address | http://www.delta.com.tw |
| Brand Name | Delta |
| Product Model | AFB0948HH |
| Product Name | AFB0948HH 92 x 92 x 25.4mm Series Case Fan |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 3200 rpm |
| Maximum Airflow | 57.92 CFM |
| Airflow Details | 1 x 57.92CFM |
| Heatsink Information | |
| Fins/Pins Style | Straight Fin |
| Cooler Type | Thermoelectric |
| Interfaces/Ports | |
| Connectors | 3-pin TX3 |
| Power Description | |
| Input Voltage | 48 V DC |
| Physical Characteristics | |
| Fan Location | Side |
| Maximum Fan Diameter | 3.62" |
| Fan Diameter Details | 1 x 92mm |
| Fan Height | 3.62" |
| Fan Width | 3.62" |
| Fan Depth | 0.98" |
| Weight (Approximate) | 3.49 oz |
| Miscellaneous | |
| Application/Usage | Case |
| General Information | |
| Product | Brushless Axial Fans |
| Type | - |
| Size | 92 mm |
| Frame Dimensions - mm | 92 mm x 92 mm x 25.4 mm |
| Operating Supply Voltage | 48 VDC |
| Airflow | 57.92 CFM |
| Speed | 3200 RPM |
| Pressure Type | 5.6 mmAq |
| Bearing Type | Ball |
| Noise | 38 dBA |
| Power Rating | 3.84 W |
| Housing Material | Plastic |
