DELTA

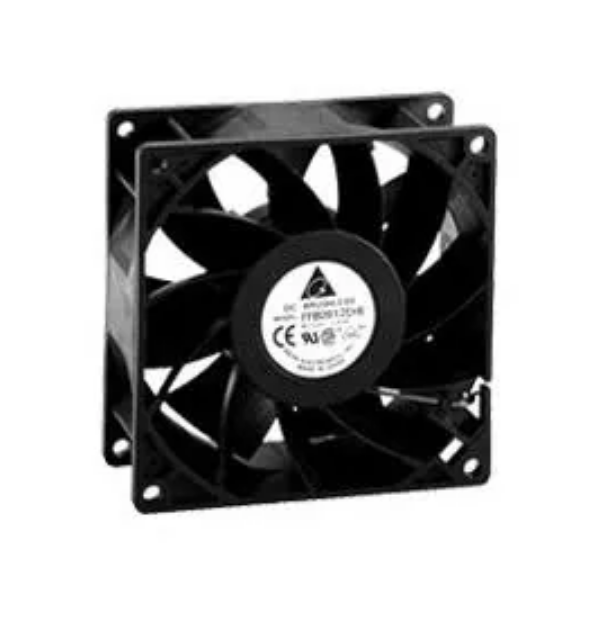

DELTA FFB0924SHE-R00 DC Fans Tubeaxial Fan, 92x38mm, 24VDC, Ball Bearing, 3-Lead Wires, Locked Rotor Sensor
Mfg Part Number: FFB0924SHE-R00 , Item #: 2240835
Special Note: Oct 27, 2015
MOQ=48
Image may not reflect the actual item.
Price: $49.99
Quantity:
More to Come
Last Updated: Oct 07, 2025
No Sales Tax except these states
, PO and Wire.
| Type: | Tubeaxial | |
| Height: | 92 mm | |
| Depth: | 38 mm | |
| Width: | 92 mm | |
| Operating Supply Voltage: | 24 VDC | |
| Airflow: | 100 CFM (2.8 m3/min) | |
| Speed: | 4400 RPM | |
| Bearing Type: | Ball | |
| Noise: | 52.5 dBA | |
| Power Rating: | 9.6 W | |
| Features: | Locked Rotor Sensor | |
| Housing Material: | Plastic | |
| Termination Style: | Wire Leads |
| General Information | |
| Product | Brushless Axial Fans |
| Type | - |
| Size | 92 mm |
| Frame Dimensions - mm | 92 mm x 92 mm x 38 mm |
| Operating Supply Voltage | 24 VDC |
| Airflow | 100.29 CFM |
| Speed | 4400 RPM |
| Pressure Type | 14 mmAq |
| Bearing Type | Ball |
| Noise | 52.5 dBA |
| Power Rating | 9.6 W |
| Housing Material | Plastic |
