DELTA

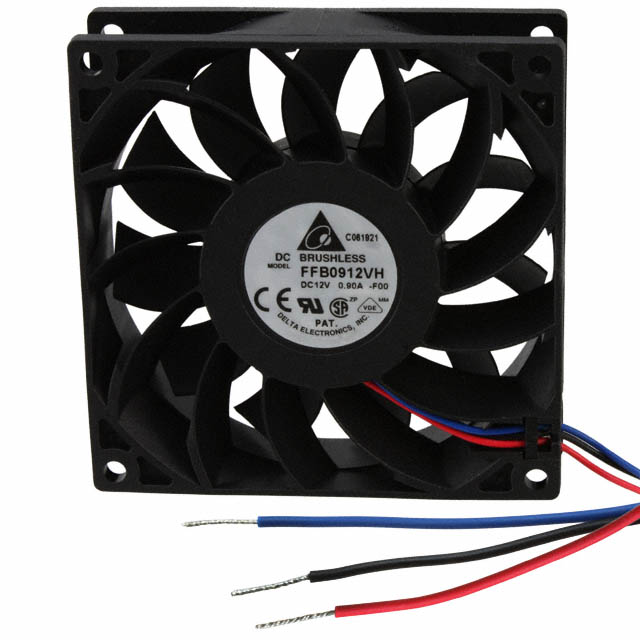

DELTA FFB0912VH-F00 DC Fans 92x92x25.4mm 12V DC Fan w/ Speed Sensor (Tach)
Mfg Part Number: FFB0912VH-F00 , Item #: 2240833
Image may not reflect the actual item.
Price: $48.55
Quantity:
In Stock: 145
Last Updated: Dec 10, 2025
No Sales Tax except these states
, PO and Wire.
|
Voltage - Rated |
|
|
|
Size / Dimension |
Square - 92mm L x 92mm H |
|
|
Width |
25.40mm |
|
|
Air Flow |
82.0 CFM (2.30m³/min) |
|
|
Static Pressure |
0.319 in H2O (79.5 Pa) |
|
|
Bearing Type |
Ball |
|
|
Fan Type |
|
|
|
Features |
Locked Rotor Protection, Speed Sensor (Tach) |
|
|
Noise |
48.2dB(A) |
|
|
Power (Watts) |
7.2 W |
|
|
RPM |
|
|
|
Termination |
3 Wire Leads |
|
|
Ingress Protection |
- |
|
|
Operating Temperature |
14 ~ 140°F (-10 ~ 60°C) |
|
|
Approval Agency |
CE, CSA, UL, VDE |
| General Information | |
| Product | Brushless Axial Fans |
| Type | - |
| Size | 92 mm |
| Frame Dimensions - mm | 92 mm x 92 mm x 25.4 mm |
| Operating Supply Voltage | 12 VDC |
| Airflow | 81.97 CFM |
| Speed | 3700 RPM |
| Pressure Type | 8 mmAq |
| Bearing Type | Ball |
| Noise | 48.2 dBA |
| Power Rating | 7.2 W |
| Housing Material | Plastic |
