DELTA  Selector

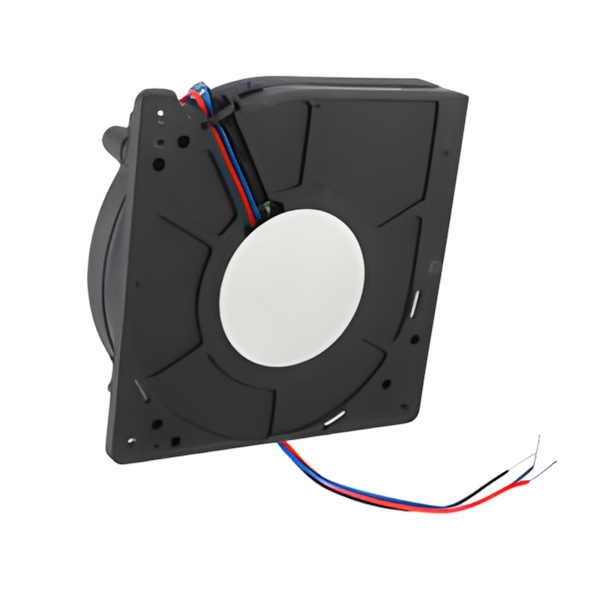

DELTA BFB1224GH-AF00 DC Blower, Square/Rect120x92x32mm 24VDC 38.4W, 60.4CFM 65dB, Tach, 3wires

Mfg Part Number:  BFB1224GH-AF00
Image may not reflect the actual item.
Price: $130.26
Quantity:
In Stock: 66
Last Updated: May 18, 2026
No Sales Tax except these states
, PO and Wire.

Fan Type: Blower, Bearing Type: Ball, Speed: 4400 RPM, Features: Speed Sensor (Tach), Material-Frame/Blade: Plastic, Lifetime @ Temp: 50000 Hrs @ 40°C, Material-Frame/Blade: Plastic, Current Rating: 1.6A, Op: -10~+60?C

General Information
Type Centrifugal Blower
Size 120 mm
Current Type DC
Operating Supply Voltage 24 V
Airflow 60.39 CFM
Bearing Type Ball
Noise 65 dBA
Speed 4400 RPM
Power Rating 38.4 W
Frame Dimensions - mm 120 mm x 32 mm x 120 mm
Housing Material Plastic
Termination Style Wire Leads
Series BFB
