DELTA

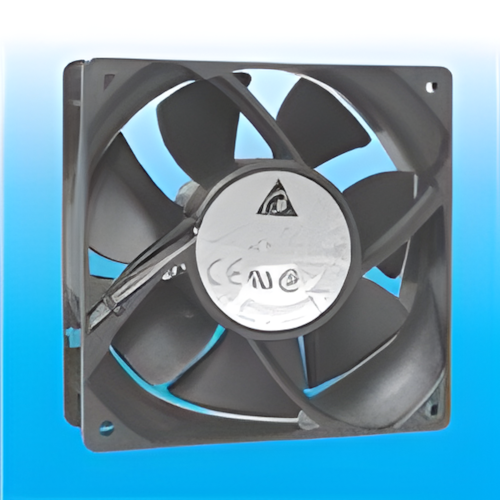

DELTA AFB1224VHE-R00 Tubeaxial Fan, 120x38mm, 24VDC, 0.57A Ball Bearing, 3-Lead Wires, Locked Rotor Sensor
Mfg Part Number: AFB1224VHE-R00 , Item #: 2237202
Image may not reflect the actual item.
Price: $89.12
Quantity:
In Stock: 3040
Last Updated: Oct 06, 2025
No Sales Tax except these states
, PO and Wire.
| General Information | |
| Product | Brushless Axial Fans |
| Type | - |
| Size | 120 mm |
| Frame Dimensions - mm | 120 mm x 120 mm x 38 mm |
| Operating Supply Voltage | 24 VDC |
| Airflow | 148.34 CFM |
| Speed | 4000 RPM |
| Pressure Type | 15 mmAq |
| Bearing Type | Ball |
| Noise | 51 dBA |
| Power Rating | 8.64 W |
| Housing Material | Plastic |
