DELTA

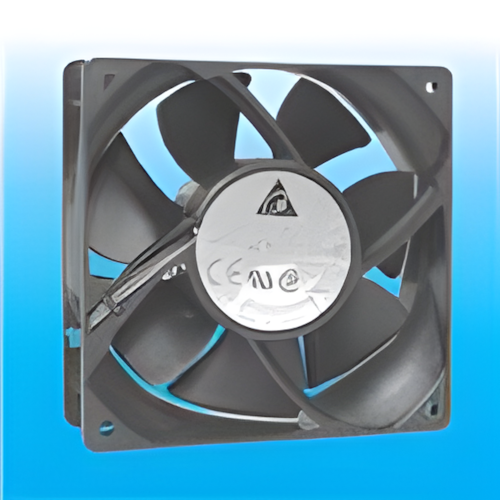

DELTA AFB1212GHE-CF00 Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 241.0 CFM (6.75m³/min) 3 Wire Leads
Mfg Part Number: AFB1212GHE-CF00 , Item #: 2232404
Image may not reflect the actual item.
Price: $69.99
Quantity:
In Stock: 359
Last Updated: Apr 03, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Delta Electronics, Inc |
| Manufacturer Part Number | AFB1212GHE-CF00 |
| Manufacturer Website Address | http://www.delta.com.tw |
| Brand Name | Delta |
| Product Model | AFB1212GHE-CF00 |
| Product Name | AFB1212GHE-CF00 Cooling Fan |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Ball Bearing |
| Fan Speed (Max) | 5200 rpm |
| Maximum Airflow | 240.96 CFM |
| Airflow Details | 1 x 240.96CFM |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Maximum Fan Diameter | 4.72" |
| Fan Diameter Details | 1 x 120mm |
| Fan Height | 4.72" |
| Fan Width | 4.72" |
| Fan Depth | 1.50" |
| Miscellaneous | |
| Application/Usage | Case |
| Certifications & Standards |
|
| Country of Origin | China |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Product | Brushless Axial Fans |
| Type | - |
| Size | 120 mm |
| Frame Dimensions - mm | 120 mm x 120 mm x 38 mm |
| Operating Supply Voltage | 12 VDC |
| Airflow | 240.96 CFM |
| Speed | 5200 RPM |
| Pressure Type | 27 mmAq |
| Bearing Type | Ball |
| Noise | 62 dBA |
| Power Rating | 29.4 W |
| Housing Material | Plastic |
Width
38.00mm
Air Flow
241.0 CFM (6.75m³/min)
Static Pressure
1.082 in H2O (269.5 Pa)
Voltage Range
6 ~ 12.8VDC
Material - Frame
Plastic
Lifetime @ Temp.
70000 Hrs @ 40°C
