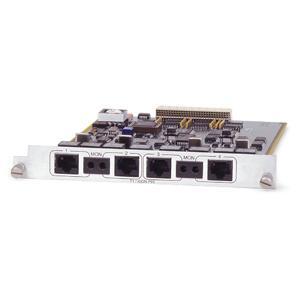

1200185L3 Adtran Atlas 800 Series T1/PRI Module

The Quad T1/PRI module combines with other ATLAS components to implement a variety of WAN access products, including a T1 Bandwidth Manager, an ISDN Access Switch, and a Digital Access Cross-connect System (DACS). The module provides four network ports, each of which can be independently configured to operate in T1 (DS-1 or DSX-1) or Primary Rate ISDN (PRI) modes.

The Quad T1/PRI module can perform T1- to-PRI conversion, translating between the robbed-bit signaling presented in a channelized T1 circuit and the D-channel signaling of a PRI circuit. When using the Quad T1/PRI module, ATLAS operates in a DACS mode supporting DS0 time slot interchange and DS0 grooming while preserving robbed bit signaling. ATLAS can be fully populated with Quad T1/PRI modules to support a pure DACSing application of 34 T1 circuits.

Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported
for alarm and event reporting.

Extensive T1 circuit monitoring is standard with the Quad T1/PRI module, including the ability to detect, store, and report all performance parameters specified in AT&T Technical Reference 54016. The module detects and reports alarm conditions associated with the circuit, including Loss of Signal, Red Alarm, Blue Alarm, Yellow Alarm, and for PRI circuits, D-Channel Synchronization.

The Quad T1/PRI module responds to standard loopback commands from the telephone company central office - both in-band commands and those sent through the Facilities Data Link. In addition, local and remote loopbacks (both line and payload) can be initiated from ATLAS. When testing the T1 circuit, the Quad T1/PRI module allows the user to select from a variety of test patterns, including all 1s, all 0s, and a standard QRSS pattern. When sending the QRSS pattern, the Quad T1/PRI module records and reports the results of the testing to the user.

General Information
Manufacturer	Adtran
Manufacturer Part Number	1200185L3
Manufacturer Website Address	http://www.adtran.com
Brand Name	Adtran
Product Line	ATLAS
Product Model	1200185L3
Product Name	Atlas 800 Series T1/PRI Module
Product Type	T1/PRI Module
Technical Information
Application/Usage	Wide Area Network
Interfaces/Ports
Total Number of Ports	4
Connector Type	RJ-48C
Interfaces/Ports Details	4 x RJ-48C T1/PRI
Media & Performance
Network Technology	T1
Maximum Distance Supported	1.83 km
Maximum Data Transfer Rate	1.544
Miscellaneous
Package Contents	Four RJ-48 to RJ-48 cables (15 feet) Two RJ-48 to RJ-48 crossover cables (15 feet) Two RJ-48 to DB-15 adapters User manual
Additional Information	Four T1/PRI interfaces Built-in CSUs Configurable for DS-1, PRI, or DSX-1 operation Maximum distance 6,000 ft AT&T 54016, 62411 and ANSI T1.403 compliant D4 and ESF framing formats AMI and B8ZS line coding D-Channel to robbed bit signaling conversion ESF performance monitoring Local and remote loopback support Generates and detects QRSS test pattern Compliant with Lucent 4ESS/5ESS, Nortel DMS100 and National ISDN Lightning protection Occupies a single slot in the ATLAS 800 series chassis Hot swappable Framing: D4, ESF Line Coding: AMI, B8ZS LBO: 0, 7.5, 15, 22.5 dB; 266, 399, 533, 655 feet System Timing: Network, Internal, External T1 Signaling Methods:- E&M Immediate, E&M Wink, Ground Start, Loop Start, Feature Group D Conversion:- Robbed Bit Signaling to ISDN D-Channel, AMI to B8ZS, D4 to ESF Switch Compatibility: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN Switch Emulation: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN Test Patterns: QRSS, All 1s, All 0s Alarms: Loss of Signal, Red, Yellow, Blue, D-Channel Performance Monitoring: ES, BES, SES, SEFS, LOFC, CSS, UAS, LCV, PCV, LES Signal Monitoring: AB signaling bits for all DS0s, individual monitor jacks for each port Diagnostics: Local Loopback - Line and Payload Remote Loopback - Line and Payload
Compatibility	ATLAS 800 series chassis Switch Compatibility: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN
Warranty
Limited Warranty	5 Year

General Information
Manufacturer	Adtran
Manufacturer Part Number	1200185L3
Manufacturer Website Address	www.adtran.com
Product Line	Atlas
Product Name	Atlas 800 Series T1/PRI Module
Marketing Information	The Quad T1/PRI module combines with other ATLAS components to implement a variety of WAN access products, including a T1 Bandwidth Manager, an ISDN Access Switch, and a Digital Access Cross-connect System (DACS). The module provides four network ports, each of which can be independently configured to operate in T1 (DS-1 or DSX-1) or Primary Rate ISDN (PRI) modes. The Quad T1/PRI module can perform T1- to-PRI conversion, translating between the robbed-bit signaling presented in a channelized T1 circuit and the D-channel signaling of a PRI circuit. When using the Quad T1/PRI module, ATLAS operates in a DACS mode supporting DS0 time slot interchange and DS0 grooming while preserving robbed bit signaling. ATLAS can be fully populated with Quad T1/PRI modules to support a pure DACSing application of 34 T1 circuits. Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported for alarm and event reporting. Extensive T1 circuit monitoring is standard with the Quad T1/PRI module, including the ability to detect, store, and report all performance parameters specified in AT&T Technical Reference 54016. The module detects and reports alarm conditions associated with the circuit, including Loss of Signal, Red Alarm, Blue Alarm, Yellow Alarm, and for PRI circuits, D-Channel Synchronization. The Quad T1/PRI module responds to standard loopback commands from the telephone company central office - both in-band commands and those sent through the Facilities Data Link. In addition, local and remote loopbacks (both line and payload) can be initiated from ATLAS. When testing the T1 circuit, the Quad T1/PRI module allows the user to select from a variety of test patterns, including all 1s, all 0s, and a standard QRSS pattern. When sending the QRSS pattern, the Quad T1/PRI module records and reports the results of the testing to the user.
Product Type	T1/PRI Module
Interfaces/Ports
Interfaces/Ports	4 x RJ-48C LAN
Interfaces/Ports Details	4 x RJ-48C DSX
Media & Performance
Connectivity Media	ISDN PRI T1
Supported Distance	6000 ft DS-1 655 ft DSX-1
Data Transfer Rate	1.544Mbps T1
Management & Protocols
Management	Configuration of the Quad T1/PRI module can be accomplished through a variety of mechanisms, including Telnet or VT100 emulation. SNMP management is supported for alarm and event reporting.
Protocols	ISDN HDLC SNMP
Power Description
Power Consumption	6.5 W
Environmental Conditions
Temperature	32 °F (0 °C) to 113 °F (45 °C) Operating -4 °F (-20 °C) to 158 °F (70 °C) Storage
Humidity	Up to 95% Non-condensing Relative Humidity
Physical Characteristics
Form Factor	Plug-in Module
Shipping Dimensions	5.00" Height x 9.25" Width x 16.25" Depth
Shipping Weight	2.40 lb
Miscellaneous
Package Contents	Four RJ-48 to RJ-48 cables (15 feet) Two RJ-48 to RJ-48 crossover cables (15 feet) Two RJ-48 to DB-15 adapters User manual
Additional Information	Four T1/PRI interfaces Built-in CSUs Configurable for DS-1, PRI, or DSX-1 operation Maximum distance 6,000 ft AT&T 54016, 62411 and ANSI T1.403 compliant D4 and ESF framing formats AMI and B8ZS line coding D-Channel to robbed bit signaling conversion ESF performance monitoring Local and remote loopback support Generates and detects QRSS test pattern Compliant with Lucent 4ESS/5ESS, Nortel DMS100 and National ISDN Lightning protection Occupies a single slot in the ATLAS 800 series chassis Hot swappable Framing: D4, ESF Line Coding: AMI, B8ZS LBO: 0, 7.5, 15, 22.5 dB; 266, 399, 533, 655 feet System Timing: Network, Internal, External T1 Signaling Methods:- E&M Immediate, E&M Wink, Ground Start, Loop Start, Feature Group D Conversion:- Robbed Bit Signaling to ISDN D-Channel, AMI to B8ZS, D4 to ESF Switch Compatibility: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN Switch Emulation: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN Test Patterns: QRSS, All 1s, All 0s Alarms: Loss of Signal, Red, Yellow, Blue, D-Channel Performance Monitoring: ES, BES, SES, SEFS, LOFC, CSS, UAS, LCV, PCV, LES Signal Monitoring: AB signaling bits for all DS0s, individual monitor jacks for each port Diagnostics: Local Loopback - Line and Payload Remote Loopback - Line and Payload
Compatibility	ATLAS 800 series chassis Switch Compatibility: PRI Mode: Lucent 4ESS/5ESS, Nortel DMS-100, National ISDN
Certifications & Standards	FCC Part 15, Class A 1950 UL 1950 Canadian UL (CUL)
