SIIG

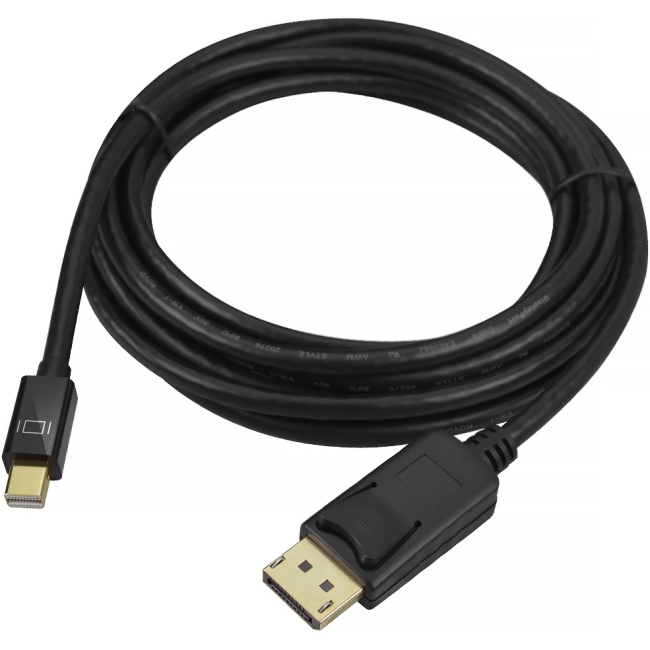

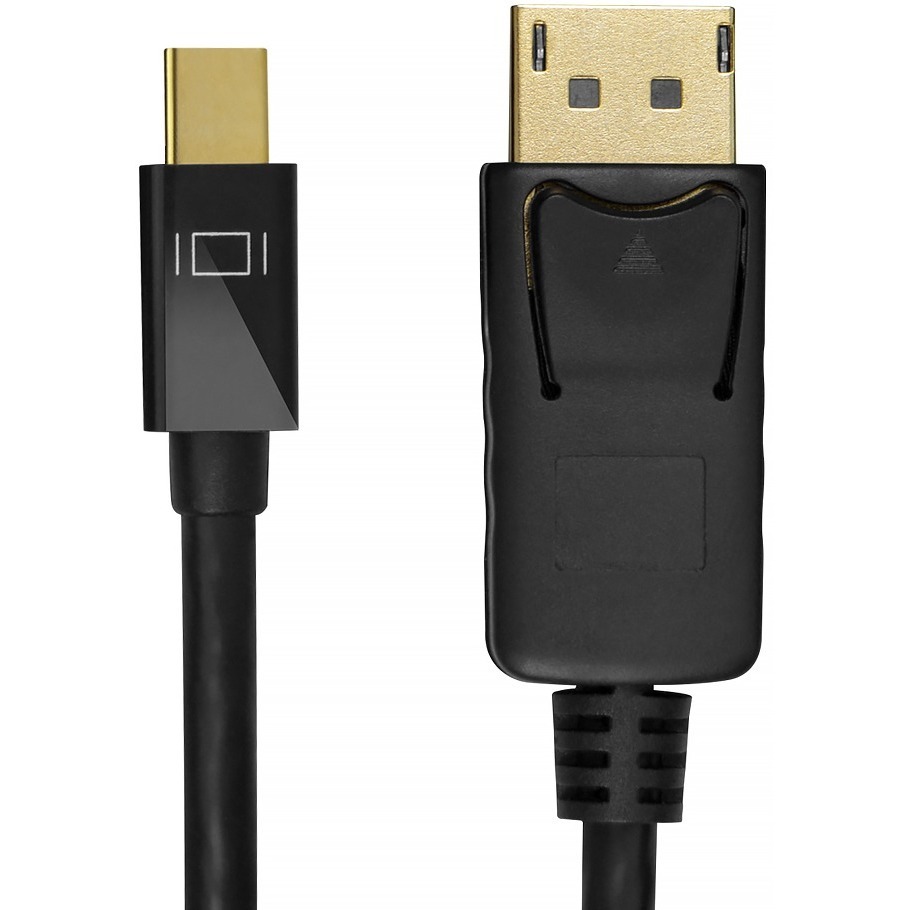

CB-DP1K12-S1 SIIG Mini DisplayPort to DisplayPort Cable - 3M

Mfg Part Number:  CB-DP1K12-S1
Image may not reflect the actual item.
Price: $49.99 + Free Shipping
Quantity:
In Stock: 61
Last Updated: Aug 29, 2025
No Sales Tax except these states
, PO and Wire.
SIIG's Mini DisplayPort to DisplayPort Cable - 3M is designed to convert Mini DisplayPort™ to standard DisplayPort connection. This DisplayPort cable is 3 meters (9.8 ft) long and comes with 20-pin Mini DisplayPort (male) to latching 20-pin DisplayPort (male) connector to prevent accidental disconnection. It is the cost-effective solution to instantly enable Mini DisplayPort-equipped systems to work with standard DisplayPort display devices.

Main Specification
General Information
Manufacturer SIIG, Inc
Manufacturer Part Number CB-DP1K12-S1
Manufacturer Website Address http://www.siig.com
Brand Name SIIG
Product Name Mini DisplayPort to DisplayPort Cable - 3M
Packaged Quantity 1
Package Type Retail
Product Type A/V Cable
Technical Information
Cable Type DisplayPort/Mini DisplayPort
Cable Length 9.84 ft
Connector Type on First End Mini DisplayPort Digital Audio/Video - Male
Connector on First End Details 1 x 20-pin Mini DisplayPort Digital Audio/Video - Male
Connector Type on Second End DisplayPort Digital Audio/Video - Male
Connector on Second End Details 1 x 20-pin DisplayPort Digital Audio/Video - Male
Connector Plating Gold
Device Supported Audio/Video Device
Physical Characteristics
Product Color Black
Jacket Material Polyvinyl Chloride (PVC)
Weight (Approximate) 0.23 lb
Miscellaneous
Additional Information
  • Compatible with Intel® Thunderbolt™ and DisplayPort 1.2 protocols
  • Supports high resolution display up to 4Kx2K
  • Support High Bit Rate 2 (HBR2) mode with bandwidth up to 21.6 Gbit/sec
  • Latching 20-Pin DisplayPort connector provides a secure connection
  • Quad-shielding further prevents signal interference
  • Assembly Required: No
Resolutions:
  • Standard (4:3 and 5:4): 2048x1536, 1600x1200, 1440x900, 1280x1024, 1280x960, 1024x768, 800x600
  • Widescreen (16:9 and 16:10): 3840x2160, 2560x1600, 2560x1440, 2048x1152, 1920x1200, 1920x1080, 1680x1050, 1600x900, 1366x768, 1280x768, 1280x72
Certifications & Standards
  • CE
  • FCC
Environmentally Friendly Yes
Country of Origin China
Warranty
Limited Warranty 3 Year
product information
WARNING:: The plastic used in cable products can expose you to lead and lead components, chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
