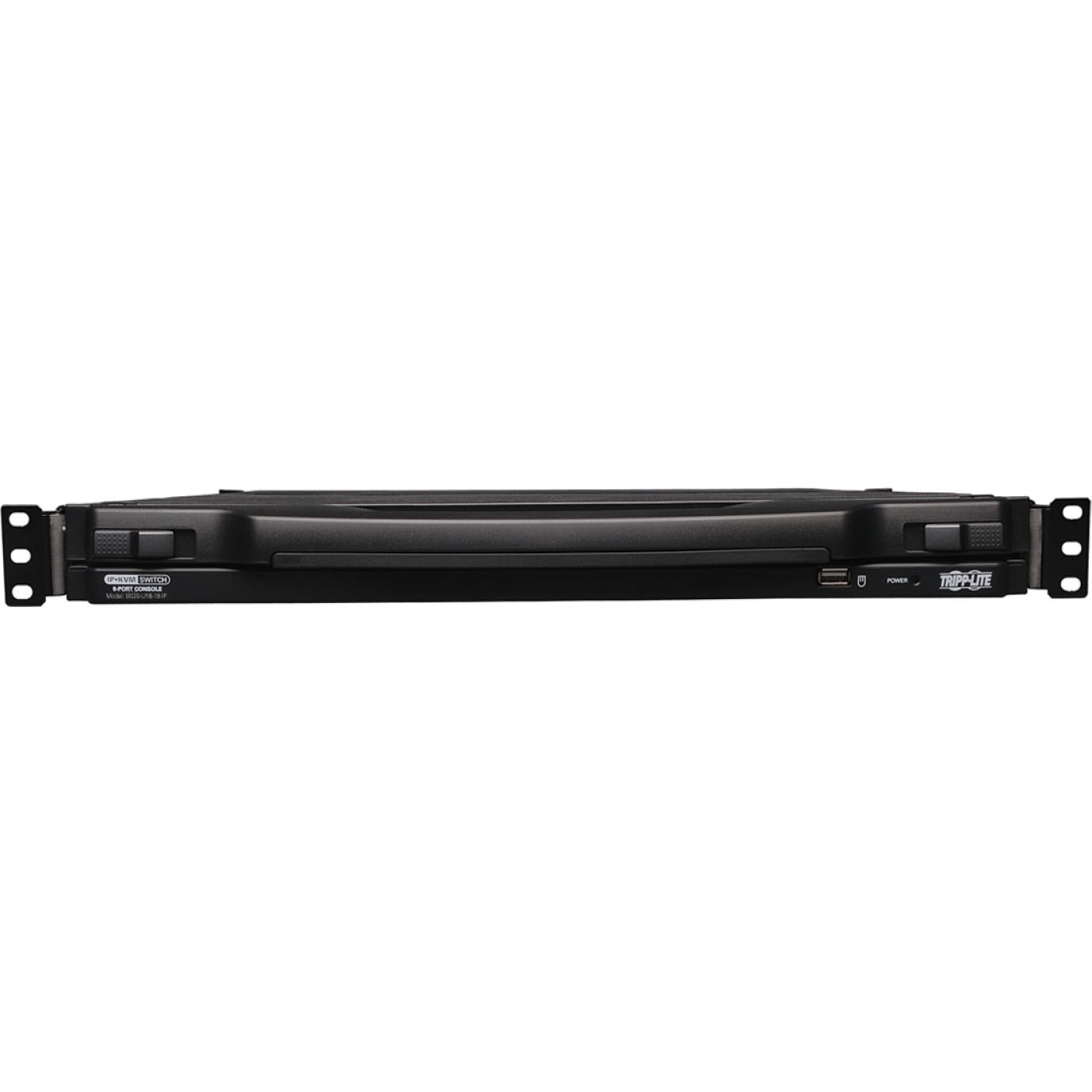

B020-U16-19-IP Tripp Lite NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD

The B020-U16-19-IP NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch combines a 16-port KVM switch, keyboard, touch pad, numeric keypad, 19-inch LCD and built-in IP remote access into a compact housing that stores neatly in 1U of rack space. Ideal for data centers, server rooms and other environments with multiple servers, the B020-U16-19-IP lets you handle complex problems without needing to be on-site, which saves money and time.

You can control up to 16 servers or computers directly from the KVM switch or remotely from anywhere else via LAN, WAN or the Internet, including system administration, BIOS-level troubleshooting, GUI application installations and equipment reboots. The built-in 19-inch monitor supports VGA video resolution up to 1280 x 1024 (@ 75 Hz). Compatible with both USB and PS/2 connections using the included cable kits, the KVM switch allows you to select a connected computer using console buttons or keyboard hotkeys. It supports IPv4 and IPv6, as well as Link Local IPv6 Address and Stateless Auto Configuration protocol.

The B020-U16-19-IP is compatible with all major operating systems and web browsers. Three levels of password protection, as well as advanced encryption and activity logging, keep your confidential data secure. You can create up to 64 user accounts, which can communicate and manage port access through a message board. An external USB port lets you connect a flash drive or card reader to share external data among connected computers.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	B020U1619IP
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Line	NetDirector
Product Model	B020-U16-19-IP
Product Name	NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD
Product Type	LCD Rack Console
Technical Information
KVM Switch	Yes
KVM Technology	Digital
Number of Computers Supported	16
Device Type	LCD Rack Console
Display & Graphics
Screen Size	19"
Display Screen Type	LCD
Screen Resolution	1280 x 1024
Input Devices
Keyboard	Yes
Interfaces/Ports
PS/2 Port	Yes
USB	Yes
VGA	Yes
Power Description
Input Voltage	230 V AC
Input Voltage	120 V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Rack Height	1U
Height	1.7"
Width	18.9"
Depth	27"
Weight (Approximate)	31 lb
Miscellaneous
Package Contents	NetDirector 16-Port 1U Rack-Mount Console IP KVM Switch w/19 in. LCD 2 x P778-Series USB/PS2 combo KVM Cable Kits, 6 ft. USB/PS2 Combo External Console Cable Kit Grounding Wire RJ11 to DB9 Firmware Upgrade Cable C13 to NEMA 5-15P Power Cord Mounting Hardware CD with Owner's Manuals and device files
Certifications & Standards	UL 60950-1 (USA) CAN/CSA (Canada) FCC Part 15 Class A CE, EN 60950-1 UL cUL CE FCC
Environmentally Friendly	Yes
Country of Origin	Taiwan
TAA Compliant	Yes
Warranty
Limited Warranty	1 Year
