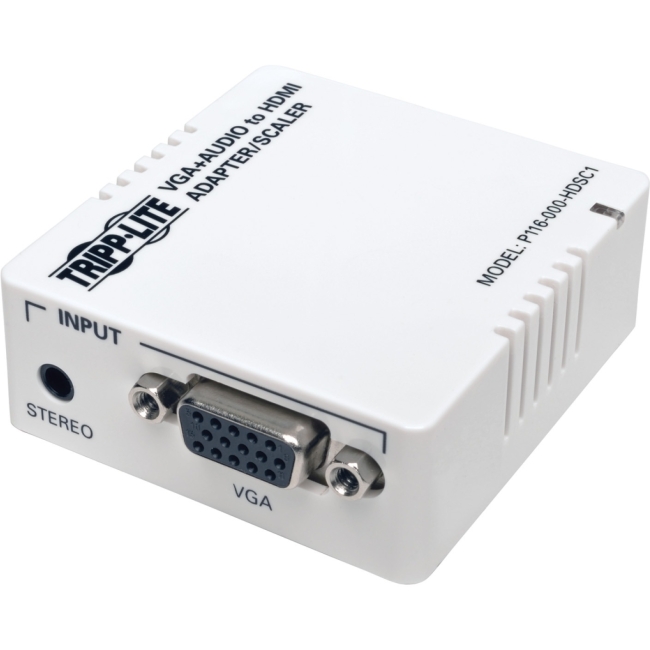

P116-000-HDSC1 Tripp Lite VGA with Audio to HDMI Converter/Scaler

The P116-000-HDSC1 VGA with Audio to HDMI Converter/Scaler saves you money on costly computer upgrades by converting and upscaling a VGA video signal for viewing on an HDMI display. The built-in scaler allows you to display a rich high-definition signal in your home audio/video setups, media presentations or digital signage using your tried-and-true analog source equipment. The unit is ready to use right from the box with no software or drivers required.

Connect the unit's female VGA video and 3.5 mm mini-stereo audio ports to your computer and the female HDMI port to your HDMI projector, monitor or television. The unit automatically upscales the video signal to 720p. Toggle the display to 1080p by pressing the button on the unit. In addition to high-definition video resolutions up to 1080p, the P116-000-HDSC1 supports computer video resolutions up to 1920 x 1440 (@ 60 Hz), HDMI bandwidth of 165 MHz (1.65 Gbps per channel) and 24-bit True Color (8 bits per channel).

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	P116-000-HDSC1
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	P116-000-HDSC1
Product Name	VGA with Audio to HDMI Converter/Scaler
Product Type	Signal Converter
Video
Maximum Video Resolution	1920 x 1440
Maximum Video Bandwidth	165 MHz
Interfaces/Ports
Audio Line In	Yes
HDMI Out	Yes
VGA In	Yes
Number of Audio Line In	1
Number of HDMI Outputs	1
Number of VGA Inputs	1
Power Description
Input Voltage	5 V DC
Physical Characteristics
Color Family	White
Product Color	White
Height	0.8"
Width	2.2"
Depth	2.4"
Weight (Approximate)	13.44 oz
Miscellaneous
Package Contents	VGA with Audio to HDMI Converter/Scaler External Power Supply (Input: 100-240V, 50/60 Hz, 0.5A; Output: 5V, 2A), 4 ft. Owner's Manual
Country of Origin	Vietnam
Environmentally Friendly	Yes
Warranty
Limited Warranty	2 Year
