B+B SmartWorx/Advantech FOSTCDRI-PH-MT Interface Modules SERIAL TO MULTI-MODE FIBER CONVERTER
Mfg Part Number: FOSTCDRI-PH-MT , Item #: 2172241

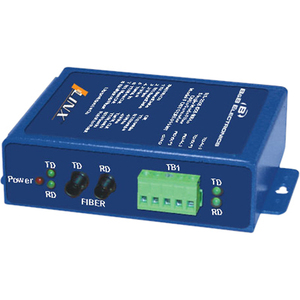

Image may not reflect the actual item.
Price: $476.27
Quantity:
More to Come
Last Updated: Jul 30, 2025
No Sales Tax except these states
, PO and Wire.
Extend Communications Up to 9 Miles!
With a pair of these serial to fiber converters, any two pieces of asynchronous serial equipment can communicate at half or full duplex over two fibers at rates up to 460 kbps for RS-422/485 or 115.2 kbps for RS-232. Fiber lines are inherently resistant to EMI/RFI and transient surges, so they are ideal for data communications near heavy electrical equipment and other electrical or radio interference.
Main Specification
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | FOSTCDRI-PH-MT |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | B+B SmartWorx |
| Product Line | Elinx |
| Product Model | FOSTCDRI-PH-MT |
| Product Name | Triple Isolated RS-232/422/485 To Multi-Mode ST Fiber Converter |
| Packaged Quantity | 1 |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| Network (RJ-45) | No |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of ST Ports | 1 |
| Number of Serial Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 2 km |
| Fiber Optic Cable Core/Cladding Specification | 62.5/125 µm |
| Physical Characteristics | |
| Form Factor | Panel-mountable |
| Height | 6" |
| Width | 5.5" |
| Depth | 3.7" |
| Weight (Approximate) | 10.24 oz |
| Miscellaneous | |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Product | Converters |
| Type | Serial to Fiber Optic |
| Number of Channels / Ports | 2 Port |
| Maximum Data Rate | 115.2 kbit/s |
| Operating Supply Voltage | 10 V to 48 V |
| Maximum Operating Temperature | + 85 C |
