DIGI Mfg Mini-Store Selector

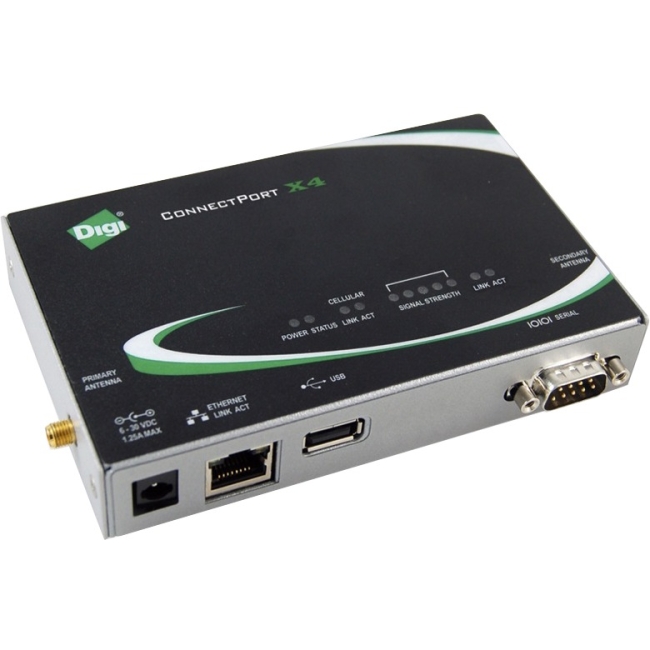

DIGI X4-A11-E-W ConnectPort X4 - XBee (802.15.4) to Ethernet. Serial (RS-232), Security (5 VPN tunnels and encryption). Includes: Int'l power supply, antennas.
Mfg Part Number: X4-A11-E-W , Item #: 2169659
Image may not reflect the actual item.
Price: $436.06
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jul 01, 2025
No Sales Tax except these states
, PO and Wire.
Remote M2M device networking gateways designed for commercial grade and rugged outdoor applications
ConnectPort X4 customizable 3G cellular M2M routing gateways offer a variety of LAN/WAN interface options for endto-end networking of remote devices. The gateways include comprehensive IP protocols and IPSec VPN support for highend routing and security. The easy DIA/Python development environment enables custom applications to run locally while interfacing across cellular networks for WAN connectivity to a centralized server.
ConnectPort X4 gateways feature a compact commercial grade enclosure or an optional outdoors IP66/NEMA 4X enclosure with Class 1, Division 2 rating for more rugged applications.
ConnectPort X4 customizable 3G cellular M2M routing gateways offer a variety of LAN/WAN interface options for endto-end networking of remote devices. The gateways include comprehensive IP protocols and IPSec VPN support for highend routing and security. The easy DIA/Python development environment enables custom applications to run locally while interfacing across cellular networks for WAN connectivity to a centralized server.
ConnectPort X4 gateways feature a compact commercial grade enclosure or an optional outdoors IP66/NEMA 4X enclosure with Class 1, Division 2 rating for more rugged applications.
Main Specification
| General Information | |
| Manufacturer | Digi International |
| Manufacturer Part Number | X4-A11-E-W |
| Manufacturer Website Address | http://www.digi.com |
| Brand Name | Digi |
| Product Line | ConnectPort |
| Product Model | X4 |
| Product Name | ConnectPort X4 Modem/Wireless Router |
| Packaged Quantity | 1 |
| Product Type | Modem/Wireless Router |
| Wireless Specifications | |
| Broadband Transmission Technology | Cellular |
| Cellular Generation | 3G |
| Interfaces/Ports | |
| Number of Network (RJ-45) Ports | 1 |
| USB | Yes |
| PoE (RJ-45) Port | No |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| VPN Supported | Yes |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 1" |
| Width | 3.4" |
| Depth | 5.3" |
| Weight (Approximate) | 7.04 oz |
| General Information | |
| Product | ZigBee to Ethernet Gateways |
| Processor Type | - |
| Frequency | 2.4 GHz |
| Data Rate | 10 Mb/s, 100 Mb/s |
| Number of Ports | 1 Ethernet, 1 RPSMA, 1 Serial, 1 USB |
| Interface Type | 802.15.4, Ethernet, Serial, USB |
| Operating Supply Voltage | 6 V to 30 V |
| Maximum Operating Temperature | + 75 C |
| Dimensions | 133.3 mm x 85 mm x 25.4 mm |
