COMNET FVT110M1/M SMALL DIGITAL ENCODED VIDEO TRANSMITTER/DATA TRANSCEIVER MM

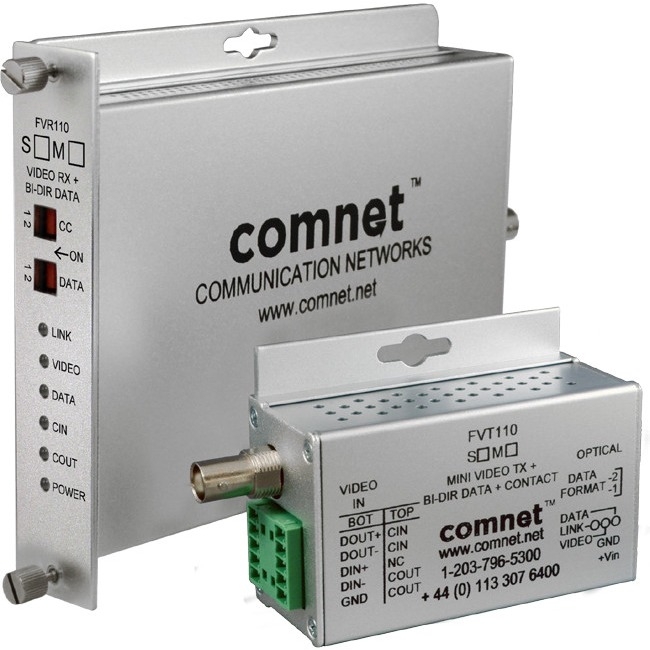

The ComNet FVT/FVR110 series is a video transmitter/receiver and data transceiver that supports the simultaneous transmission of short haul quality 10-bit EIA RS-250C digitally encoded video and bi-directional data over one multimode or single mode optical fiber. The module is universally compatible with major CCTV camera manufacturers and supports RS232, RS422 and 2 or 4-wire RS485 data interfaces and most data protocols. It also supports "up-the-coax" data transmission from all major manufacturers, utilizing time-base correction these units can achieve distances of 48km. The FVT/FVR110 supports Panasonic Proteus™ , Pelco Coaxitron™ and Bosch Bilinx™ Up-the-Coax systems. The FVT110 also transmits a single bi-directional contact closure signal. Packaged in the exclusive ComNet ComFit housing, the full-size units may be either wall or rack-mounted, or may be DIN-rail mounted by the addition of ComNet model DINBKT1 adaptor plate.

General Information
Manufacturer	ACRE
Manufacturer Part Number	FVT110M1/M
Manufacturer Website Address	http://www.acre-co.com
Brand Name	ComNet
Product Series	FVT/FVR110(M,S)1[M]
Product Name	Mini Video Transmitter/Data Transceiver
Product Type	Transceiver/Media Converter
Media & Performance
Media Type Supported	Optical Fiber
Fiber Mode Supported	Multi-mode
Fiber Optic Cable Wavelength	0.1 mil
Maximum Distance Supported	3 km
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm
Power Description
Power Source	DC
Physical Characteristics
Form Factor	Rack-mountable
Form Factor	Rail-mountable
Height	1.5"
Width	2.5"
Depth	3.3"
Miscellaneous
Package Contents	Mini Video Transmitter/Data Transceiver DC Plug-in Power Supply
Environmentally Friendly	Yes
Country of Origin	United States
Warranty
Limited Warranty	Lifetime
