COMNET

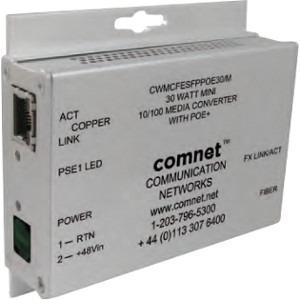

CWMCFESFPPOE30/M ComNet Commercial Grade 100Mbps Media Converter with 48V POE, Mini, SFP Required
Mfg Part Number: CWMCFESFPPOE30/M , Item #: 2149573
Image may not reflect the actual item.
Price: $807.45
+ Free Shipping
Quantity:
More to Come
Last Updated: Jun 09, 2025
No Sales Tax except these states
, PO and Wire.
The ComNet™ CWMCFE(X)POE/M Series 2-port media converters provide full-duplex fiber optic transmission of a single channel of 10/100 Mbps Ethernet data (10/100 BASE-TX) through multimode or single mode optical fiber. Type ST, SC or SFP optical connectors are available. They provide full compliance with IEEE 802.3at as Power Sourcing Equipment(PSE), with a maximum power of 30 watts in Mode A or Mode B, making them ideal for those applications where the remote equipment draws significant power. A higher output 60 watt model is available. Mode A and mode B are selected by the media converter automatically. The Ethernet electrical interface auto-negotiates to either 10 or 100 Mbps without the need for any user selection, and the optical interface operates at 100 Mbps (100-FX). Packaged in a rugged, compact sized housing, these units are designed for shelf or stand-alone mounting, or may be DIN-rail mounted by the addition of ComNet model DINBKT2 Adaptor plate kit. LED indicators are provided for rapidly ascertaining the operating status of the device. A power supply providing 48 VDC at 1.25A is provided with each converter. Plug-and-play design ensures ease of operation, and no optical adjustments are ever required.
Main Specification
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | CWMCFESFPPOE30/M |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Model | CWMCFESFPPOE30/M |
| Product Name | Commercial Grade 100Mbps Media Converter with 48V POE, Mini, SFP Required |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 2 |
| DVI | No |
| USB | No |
| Management Port | No |
| Number of PoE+ (RJ-45) Ports | 1 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Expansion Slot Type | SFP |
| Number of SFP Slots | 1 |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-X |
| Network Technology | 10/100Base-T |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Desktop |
| Form Factor | Rail-mountable |
| Height | 1.1" |
| Width | 2.5" |
| Depth | 3.3" |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | 5 Year |
