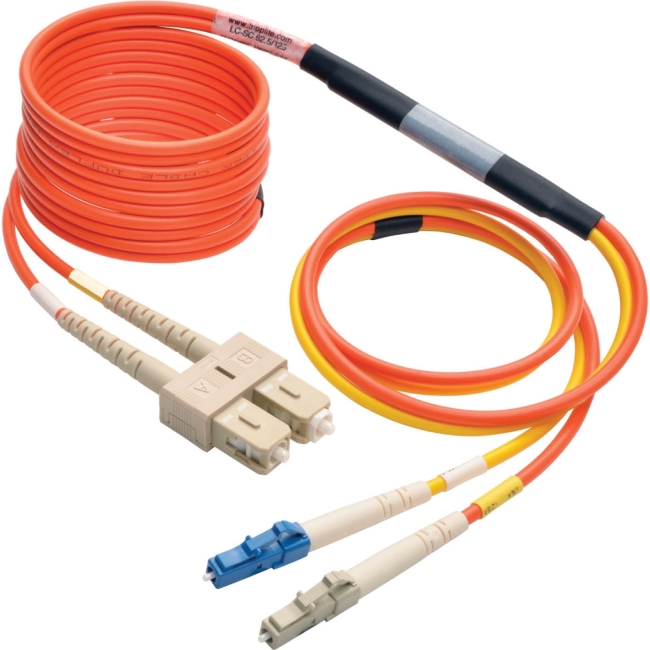

N425-02M Tripp Lite Fiber Optic Mode Conditioning Patch Cable LC/MC to SC 2M 6ft

Tripp Lites Mode Conditioning Cables are designed for use in Gigabit Ethernet 1000BASE-LX applications. N425-Series cables convert a Singlemode LC GBIC to an SC Multimode patch bay. They are fully compliant with IEEE 802.3z application standards. Mode Conditioning Cables are needed in applications where high-speed Gigabit 1000BASE-LX routers and switches are being deployed into existing Multimode plants. The need for this patch cord is due to the single-mode launch nature of the -LX or long-wave (1300 nm) transceiver modules used for Gigabit Ethernet. Launching a single-mode laser into the center of a multimode fiber can cause multiple signals to be generated that confuses the receiver at the other end of the fiber. These multiple signals, caused by Differential Mode Delay (DMD) effects, severely limit the cable distance lengths for operating Gigabit Ethernet. A mode conditioning patch cord eliminates these multiple signals by allowing the single-mode launch to be offset away from the center of a multimode fiber.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	N42502M
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	N425-02M
Product Name	2M/6ft Fiber Optic SMF-MMF LC
Product Type	Network Cable
Technical Information
Cable Type	Fiber Optic
Cable Characteristic	Patch Cable
Fiber Optic Mode	Single-mode
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	62.5/125 µm
Fiber Optic Cable Core/Cladding Specification	8.3/125 µm
Cable Length	6 ft

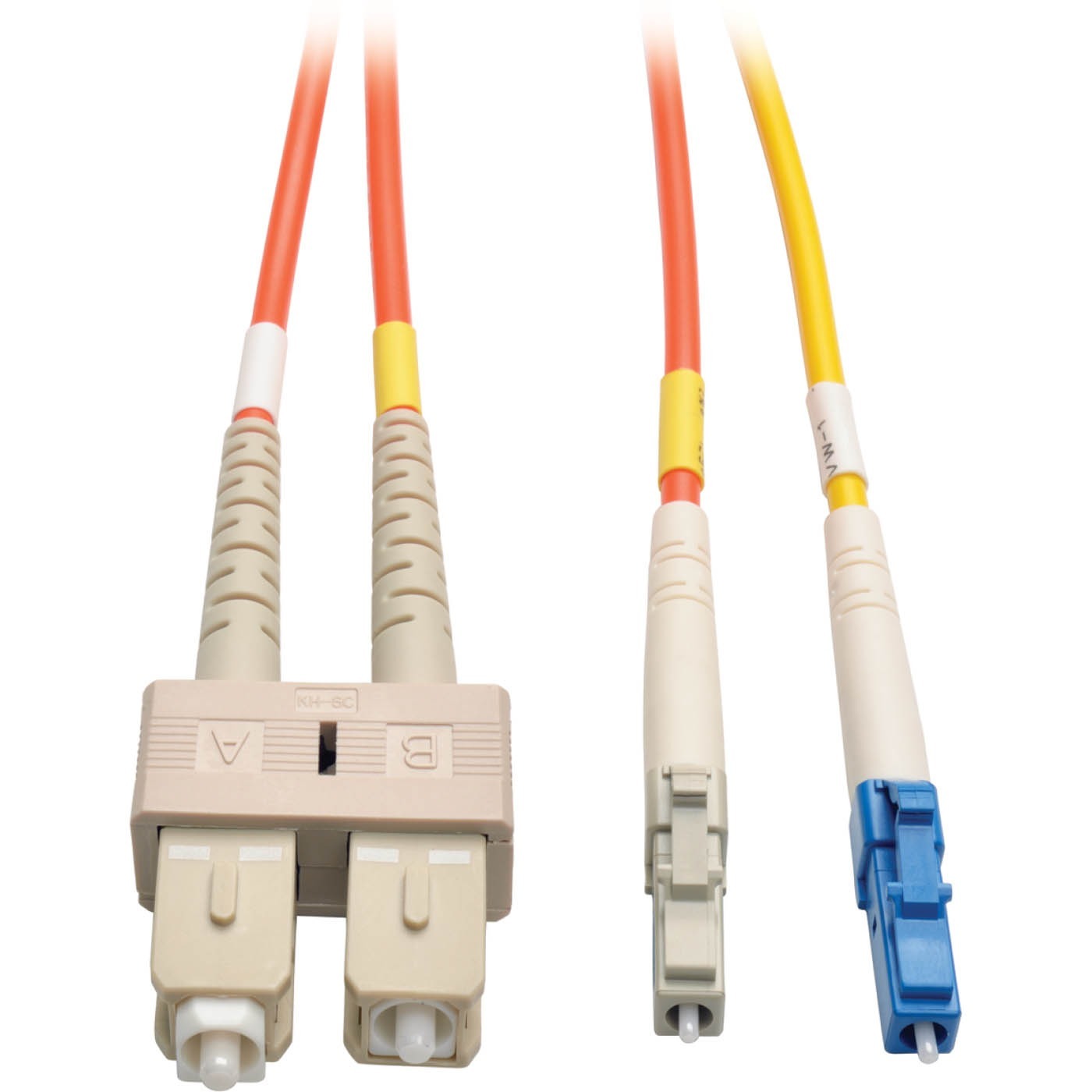

Connector Type on First End	LC Network - Male
Connector on First End Details	2 x LC Network - Male
Connector Type on Second End	SC Network - Male
Connector on Second End Details	2 x SC Network - Male
Device Supported	Network Device
Device Supported	Router
Device Supported	Switch
Physical Characteristics
Color Family	Orange
Product Color	Orange
Shipping Height	7"
Shipping Width	9"
Shipping Weight (Approximate)	1.76 oz
Miscellaneous
Environmentally Friendly	Yes
Country of Origin	China
Warranty
Limited Warranty	Lifetime
