American FiberTek
American FiberTek MRX-46-FX-SC Ethernet - FX Fiber Port + 2 RJ45 Ports 10/100/1000 MM 1 Fiber Module
Mfg Part Number: MRX-46-FX-SC , Item #: 2145923

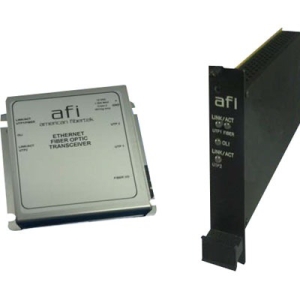

Image may not reflect the actual item.
Price: $474.95
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Jan 02, 2026
No Sales Tax except these states
, PO and Wire.
The American Fibertek 46 Series transmits and receives (2) copper 10/100 BaseT Ethernet signals at the RJ45 ports and (1) optical 100 Base-FX over 1 or 2 multimode fibers. The system is comprised of two units forming a point-to-point communications link.
The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100 BaseT). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Main Specification
| General Information | |
| Manufacturer | American Fibertek, Inc |
| Manufacturer Part Number | MRX-46-FX-SC |
| Manufacturer Website Address | http://www.americanfibertek.com |
| Brand Name | Afi |
| Product Series | 46-FX |
| Product Model | MRX-46-FX-SC |
| Product Name | 10/100Base-T to 100Base-FX Ethernet Media Converter / 3 Port Switch |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 3 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 2 |
| Number of SC Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 0.1 mil |
| Network & Communication | |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network Technology | 100Base-FX |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Desktop |
| Height | 1.1" |
| Width | 4.3" |
| Depth | 4.3" |
| Miscellaneous | |
| Certifications & Standards | IEEE Standards:
|
