American FiberTek

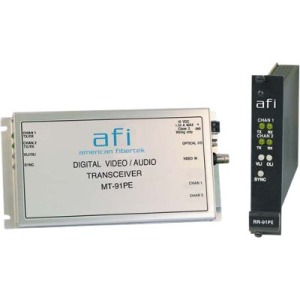

American FiberTek MT-91PE Video & Ethernet Module Tx 1310/1550nm 12dB 2Km MM 1 Fiber
Mfg Part Number: MT-91PE , Item #: 2145773
Image may not reflect the actual item.
Price: $4,497.42
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Jul 24, 2025
No Sales Tax except these states
, PO and Wire.
The American Fibertek 91PE-SL Series transmits high-quality, state of the art, 10-bit digital video and (2) 10/100Base-TX Ethernet ports one multimode optical fiber.
The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100Base-TX). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack cards that are mounted in the American Fibertek Card Cages: SR-20R/1 or SR20/2.
The "Afinety" intelligent remote monitoring system is available on this product, please consult factory.
The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100Base-TX). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack cards that are mounted in the American Fibertek Card Cages: SR-20R/1 or SR20/2.
The "Afinety" intelligent remote monitoring system is available on this product, please consult factory.
Main Specification
| General Information | |
| Manufacturer | American Fibertek, Inc |
| Manufacturer Part Number | MT-91PE |
| Manufacturer Website Address | http://www.americanfibertek.com |
| Brand Name | Afi |
| Product Series | 91PE |
| Product Model | MT-91PE |
| Product Name | Module Transmitter |
| Product Type | Video Extender Transmitter |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 1 |
| Maximum Operating Distance | 6561.68 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of ST Ports | 1 |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Media Type Supported | Optical Fiber |
| Physical Characteristics | |
| Transmitter Height | 1.13" |
| Transmitter Width | 8.13" |
| Transmitter Depth | 4.13" |
| Form Factor | Standalone |
