American FiberTek
American FiberTek RX-46-FX-SC Ethernet - FX Fiber Port + 2 RJ45 Ports 10/100/1000 MM 2 Fiber Rack Card
Mfg Part Number: RX-46-FX-SC , Item #: 2145710

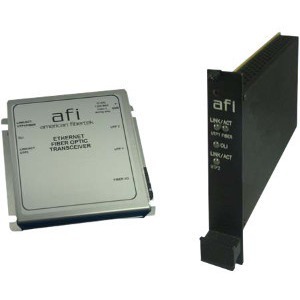

Image may not reflect the actual item.
Price: $522.51
+ Free Shipping
Quantity:
In Stock: 1
Last Updated: Jul 02, 2025
No Sales Tax except these states
, PO and Wire.
The American Fibertek 46 Series transmits and receives (2) copper 10/100 BaseT Ethernet signals at the RJ45 ports and (1) optical 100 Base-FX over 1 or 2 multimode fibers. The system is comprised of two units forming a point-to-point communications link.
The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100 BaseT). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack cards that are mounted in the American Fibertek Card Cage: SR-20/2
The system is designed to be completely transparent with auto negotiation features which automatically configures the unit for the correct speed (10/100 BaseT). Auto MDI/MDIX operation eliminates the potential need for crossover cables. Diagnostic indicators provide a quick visual indication of system status.
Equipment may be ordered as stand alone modules or rack cards that are mounted in the American Fibertek Card Cage: SR-20/2
Main Specification
| General Information | |
| Manufacturer | American Fibertek, Inc |
| Manufacturer Part Number | RX-46-FX-SC |
| Manufacturer Website Address | http://www.americanfibertek.com |
| Brand Name | Afi |
| Product Name | Two Fiber Rack Card FX Multimode |
| Product Type | Video Extender Transmitter/Receiver |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Input Devices Supported | 2 |
| Number of Output Devices Supported | 2 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of SC Ports | 2 |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Physical Characteristics | |
| Transmitter Height | 1" |
| Transmitter Width | 5" |
| Transmitter Depth | 6.50" |
| Form Factor | Rack-mountable |
