BLACK BOX LMC401A FAST ETHERNET (100-MBPS) MEDIA CONVERTER - 10/100/1000-MBPS COPPER TO 100-MBPS M
Mfg Part Number: LMC401A , Item #: 2142517
, PO and Wire.

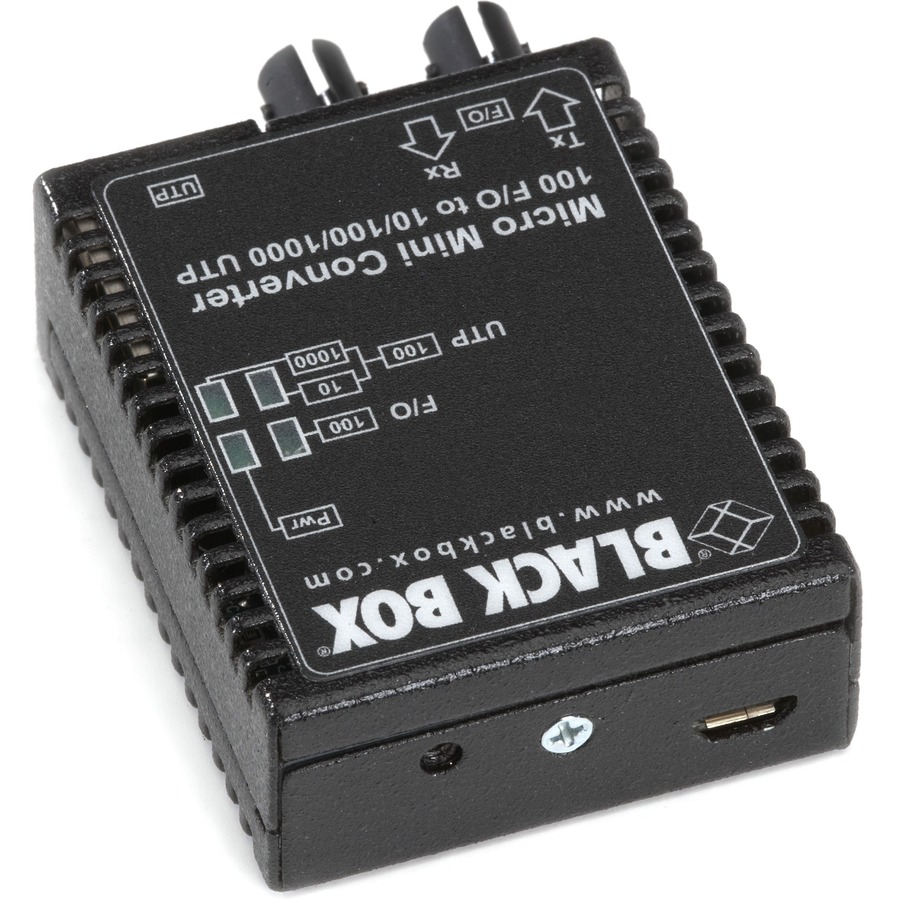

The Micro Mini Media Converter is ideal for bringing fiber to the desktop and for mobile applications where light weight, compact size, and low power requirements are critical.
Weighing only 2.5 ounces and about the length of a house key, this ultra-compact media converter is portable yet powerful. For extra versatility, it can be USB-powered, making it easy to provide fiber connectivity to locations where AC or DC power is unavailable, for instance, field-deployed fiber-to-the-laptop. For easy portability, this tiny converter conveniently slips into a pocket or laptop carrying case.
The converter is plug-and-play with an RJ-45 port that autonegotiates for speed, duplex mode, and crossover functions for PCs with 10BASE-T, 100BASE-TX, and 1000BASE-T Ethernet. On the fiber side, the converter has an ST connector for connection to multimode fiber.
Because it can be powered through a computer's USB 1.0 or 2.0 port, the Micro Mini Media Converter is ideal for connections to fiber in areas where a spare power outlet may not be available. When plugged into a computer's USB port, the media converter shuts down automatically when you turn off the computer, which saves energy.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | LMC401A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Line | Micro Mini |
| Product Model | LMC401A |
| Product Name | Micro Mini LMC401A Transcevier Media Converter |
| Product Type | Transceiver/Media Converter |
| Interfaces/Ports | |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| USB | Yes |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Fiber Optic Cable Wavelength | 1310 nm |
| Maximum Distance Supported | 5 km |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100/1000Base-T |
| Network Technology | 100Base-X |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Height | 0.8" |
| Width | 1.8" |
| Depth | 2.3" |
| Weight (Approximate) | 2.50 oz |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | United States |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
