Elo TouchSystems

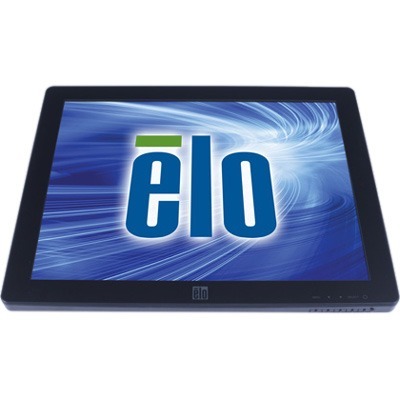

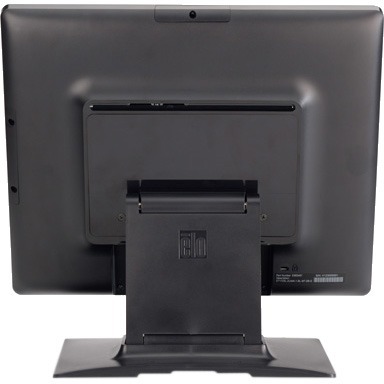

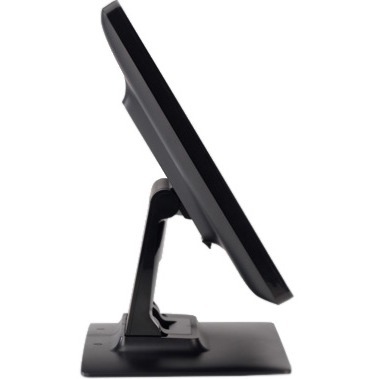

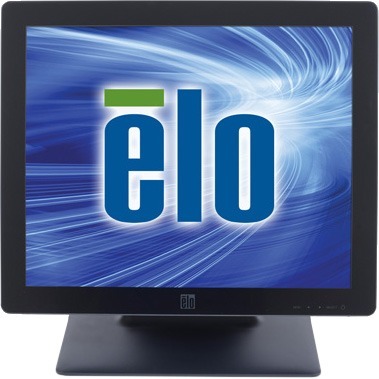

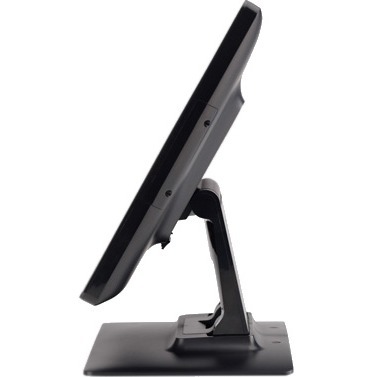

Elo TouchSystems E683457 Elo 1723L 17" LED LCD Touchscreen Monitor - 5:4 - 30 ms
Mfg Part Number: E683457 , Item #: 2140182
, PO and Wire.
The Elo Touch Solutions 1723L 17-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions. Retail peripheral accessories include an encryptable MSR, NFC/RFID for contactless payments, webcam, and rear-facing display bracket.
The edge to edge flat glass style of the 1723L brings a sleek, modern feel to any application. It is available in two touchscreen technologies, IntelliTouch Zero-Bezel surface acoustic wave, and IntelliTouch Pro projected capacitive with anti-glare surface coating, supporting 10-touch interaction right out of the box.
Both touch technologies provide a stable "drift-free" operation with outstanding image clarity, resolution and light transmission - for an accurate touch response and vivid images.
The 1723L has been "designed for touch" from the ground up, with such features as a spill-resistant sealing, adjustable height stand with tilting functionality, VESA mounting option, connectivity incorporated within the monitor (reducing the number of power bricks), and communication cables and side controls with lockout capability.
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E683457 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Model | 1723L |
| Product Name | 1723L Multifunction 17-inch Desktop Touchmonitor |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 17" |
| Viewable Screen Size | 17" |
| Screen Mode | SXGA |
| Response Time | 30 ms |
| Aspect Ratio | 5:4 |
| Mount Type | Wall Mountable |
| Backlight Technology | LED |
| Video | |
| Maximum Resolution | 1280 x 1024 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 800:1 |
| Brightness | 250 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | IntelliTouch Pro Projected Capacitive |
| Multi-touch Screen | Yes |
| Interfaces/Ports | |
| DVI | Yes |
| USB | Yes |
| VGA | Yes |
| Power Description | |
| Operating Power Consumption | 22 W |
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Product Color | Black |
| Height with Stand | 8.24" |
| Width with Stand | 15.42" |
| Depth with Stand | 14.20" |
| Weight (Approximate) | 7.86 lb |
| Weight with Stand (Approximate) | 25.35 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
