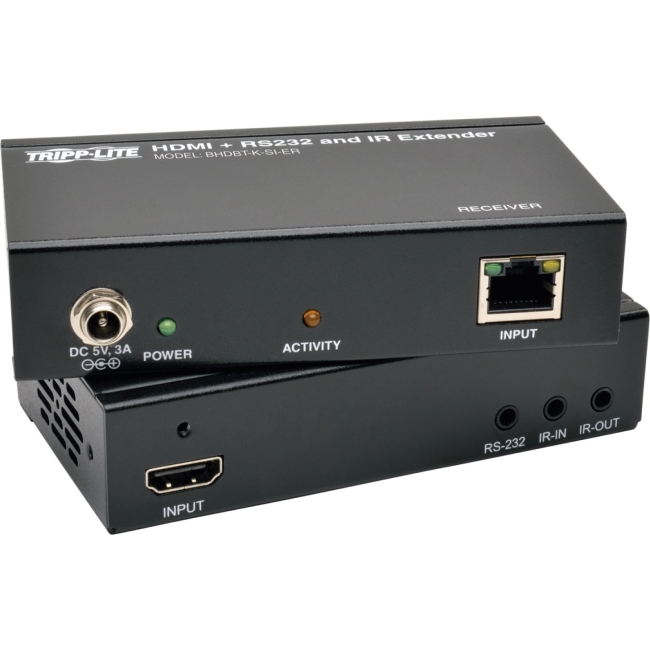

BHDBT-K-SI-ER Tripp Lite HDBaseT Lite HDMI Over Cat5e Cat6 Extender Serial IR 500ft Range

Tripp Lite's BHDBT-K-SI-ER implements HDBaseT technology to transmit HDMI audio and video, RS-232 Serial, and IR Remote Control signals up to 500-ft. (150M) over a single Cat5e/6/6a cable, displaying HD video resolutions up to 1920 x 1080 (1080p) @ 60Hz. You can further expand the range and number of monitors in your installation by adding BHDBT-TR-SI-ER transceivers in between the transmitter and receiver units. The BHDBT-TR-SI-ER features a HDMI port for the connection of a monitor, and can be located 500-ft. (150M) from the transmitter unit. The receiver unit can then be located the same distance from the transceiver, allowing you to double the total extension distance. Up to 5 transceiver units can be inserted in between the transmitter and receiver, allowing for an overall extension distance of up to 3,000-ft. (900M), with a monitor located at each point in the chain.

In addition to transmitting HDMI audio and video, the BHDBT-K-SI-ER features 2-way IR Remote Control, allowing you to control your Blu-Ray player using its remote control when at the remote display, or to control your remote display using its remote control when at the Blu-Ray player. (IR Frequency @ 39Khz) RS-232 Serial is also transmitted, with support for baud rates up to 115kbps, allowing you to control serial devices such as touchscreens or scanners.

The transmitter and receiver feature locking HDMI ports, for use with Tripp Lite's series of High Speed HDMI cables with Locking connectors (e.g. P569-006-LOCK). These cables lock into the ports on the transmitter and receiver units, preventing them from accidentally being loosened or disconnected, and ensuring that your signal remains intact, The BHDBT-K-SI-ER supports 7.1 channel surround sound, DTS-HD, and Dolby TrueHD audio, as well as 3D video, EDID, and HDCP. Mounting hardware is included that allows each unit to be wall mounted, rack mounted, or pole mounted. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	BHDBT-K-SI-ER
Manufacturer Website Address	http://www.eaton.com
Brand Name	Tripp Lite by Eaton
Product Model	BHDBT-K-SI-ER
Product Name	BHDBT-K-SI-ER Video Console/Extender
Product Type	Video Extender Transmitter/Receiver
Technical Information
Connectivity Technology	Wired
Number of Input Devices Supported	1
Number of Output Devices Supported	1
Maximum Operating Distance	500 ft
Video
Graphics Modes	Full HD
Maximum Video Resolution	1920 x 1080
Interfaces/Ports
Network (RJ-45)	Yes
HDMI In	Yes
HDMI Out	Yes
Number of Network (RJ-45) Ports	2
Number of HDMI Inputs	1
Number of HDMI Outputs	1
Media & Performance
Media Type Supported	Twisted Pair
Twisted Pair Cable Standard	Category 6a
Power Description
Input Voltage	120 V AC
Input Voltage	5 V DC
Input Voltage	230 V AC
Physical Characteristics
Color Family	Black
Product Color	Black
Form Factor	Wall Mountable
Form Factor	Rack-mountable
Form Factor	Pole-mountable
Transmitter Weight (Approximate)	1.05 lb
Miscellaneous
Package Contents	Transmitter Receiver IR-IN and IR-OUT Cables 3.5 mm Male to DB9 Female Adapter Cable 3.5 mm Male to DB9 Male Adapter Cable 2 x External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A) Mounting Hardware Owner's Manual
Certifications & Standards	TAA CE FCC
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Warranty
Limited Warranty	1 Year
