BLACK BOX

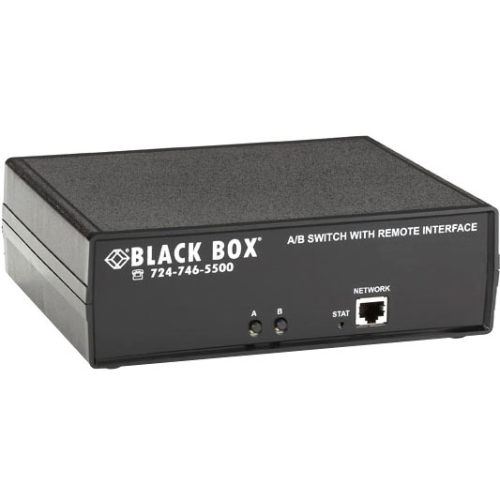

BLACK BOX SW1041A CAT6 AB SW LATCH RJ45 RC RS232 DRY CNTCT

Mfg Part Number:  SW1041A
Image may not reflect the actual item.
Price: $601.08 + Free Shipping
Quantity:
In Stock: 7
Last Updated: Sep 27, 2025
No Sales Tax except these states
, PO and Wire.
  • Durable and reliable. Tested to 1,000,000 cycles
  • Manual control of the switch port supported through A/B push button on the front.
  • Can be switched remotely via Ethernet, RS-232, or dry contact as well.
    • Main Specification
    General Information
    Manufacturer Black Box Corporation
    Manufacturer Part Number SW1041A
    Manufacturer Website Address http://www.blackbox.com
    Brand Name Black Box
    Product Model SW1041A
    Product Name CAT6 Remotely Controlled Layer 1 A/B Switch, Latching, Ethernet, RS-232
    Product Condition New
    Product Type Serial Switchbox
    Interfaces/Ports
    Input Connector Type Serial
    Number of Serial Ports 1
    Physical Characteristics
    Height 2.5"
    Width 6.3"
    Depth 8.1"
    Weight (Approximate) 4 lb
    Miscellaneous
    Additional Information
    • Data Rate: 10/100/1000 and 10G Ethernet
    • Power Input: 100-240 VAC, 50-60 Hz, autosensing; Output: 12 VDC
    • Switching Speed Typical: 5 msec; Maximum: 10 msec
    Connectors:
    • A/B switch ports: (3) RJ-45
    • Ethernet control port: (1) RJ-45 10BASE-T port for remote control interface
    • Serial control port: DB9 F
    • Remote control/status port: (1) 6-position terminal block
    • Power: (1) 2.1 x 5.5-mm power input
    Certifications & Standards
    • CE
    • FCC
    Country of Origin United States
    Environmentally Friendly Yes
    Warranty
    Limited Warranty 1 Year
