KRAMER THE FC-132ETH IS AN ADVANCED ETHERNET CONTROL GATEWAY AND SERIAL COMMUNICATION M
Mfg Part Number: FC-132ETH , Item #: 2101487
, PO and Wire.

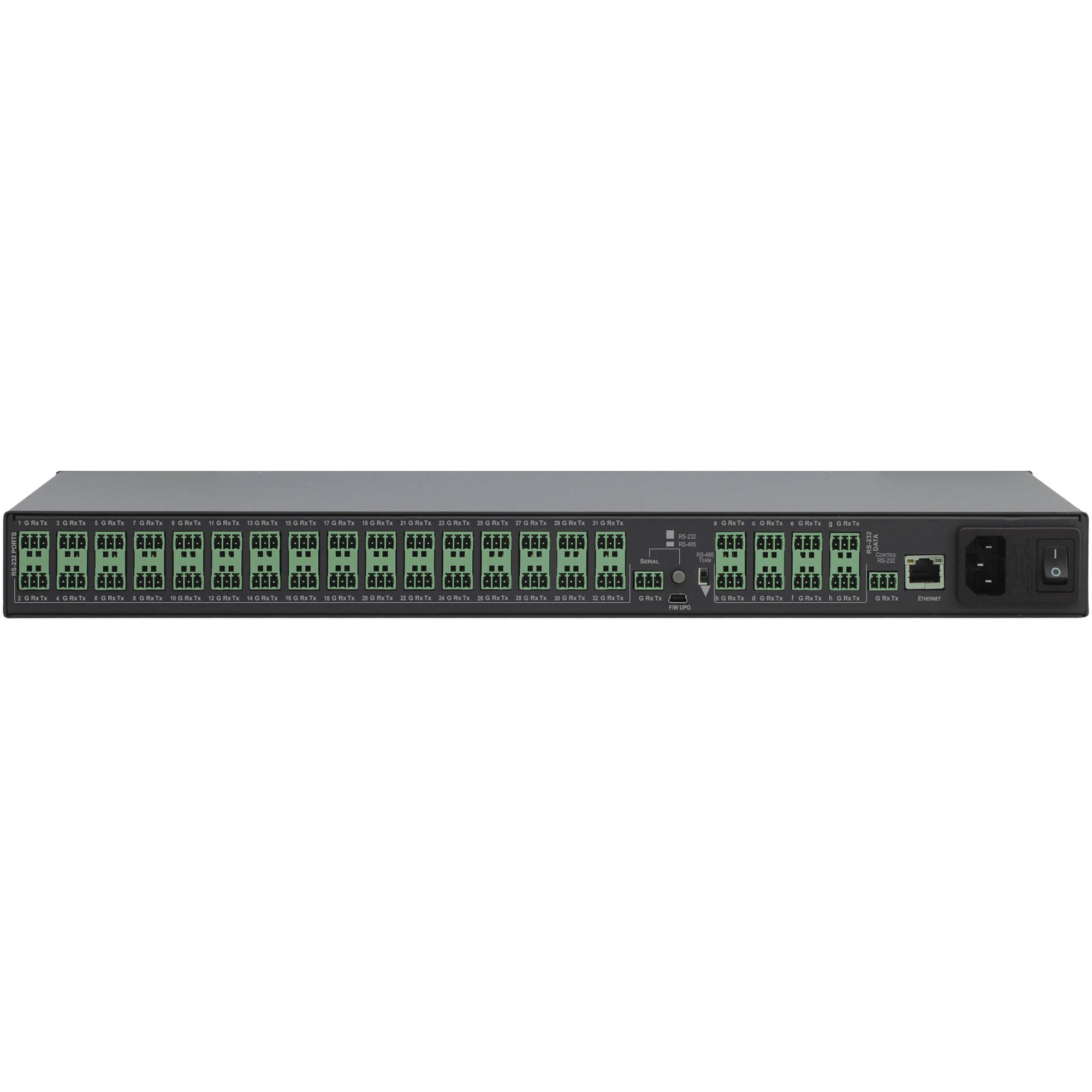

The FC-132ETH is an advanced Ethernet control gateway and serial communication matrix, capable of plug and play deployment over a customer Ethernet LAN. Serving as an advanced serial communication matrix, the FC-132ETH has 32 RS-232 and one RS-232/RS-485 output ports. Serial communication data is switchable to one or more of the eight RS-232 input ports. This can be done according to local control of panel buttons or RS-232 control port, or remote control via Ethernet port control protocol or web-page browsing. Depending on matrix routing, one-to-one bidirectional or one-to-many unidirectional serial switched communication is supported. Serving as a control gateway, FC-132ETH is capable of remote bidirectional control of customer-controlled devices serially connected to its 32 RS-232 and one RS-232/RS-485 input ports. Multiple control clients can be IP-connected to the FC-132ETH control gateway for concurrent control of two RS-232 or RS-485 controllable devices, such as AV scalers, video displays, and audio amplifiers.
- 1 RS-485 or RS-232 Selectable Bi-directional Output Port - Controls a device via bi-directional serial control protocols.
- 32 Bidirectional RS-232 Output Ports - Control a device via bi-directional serial control protocols.
- 8 Bidirectional RS-232 Input Ports - Switchable serial communication to one or more of the serial input ports.
- 4 Panel Buttons & LCD Display - Local panel control of serial matrix ports switching.
- 1 Panel Take / Lock Button - Local panel switching control or tampering prevention.
- 1 Bidirectional RS-232 Control Port - Local protocol-based switching control port.
- 1 Ethernet Control Port - Remote protocol-based control port?
- Built-in Web Pages - Remote browser-based control and support.
- Simultaneous IP Control Communication - With up to 40 IP control clients.
- Mini USB Port - For firmware upgrades and local technical services.
- Easy Installation - Plug & play IP auto-setup deployment for simple and cost-reducing installation.
| General Information | |
| Manufacturer | Kramer Electronics LTD |
| Manufacturer Part Number | FC-132ETH |
| Manufacturer Website Address | http://www.kramerelectronics.com |
| Brand Name | Kramer |
| Product Model | FC-132ETH |
| Product Name | 32?Port Serial Control Gateway And Advanced Serial Communication Matrix |
| Product Type | Ethernet Control Gateway/Serial Communication Matrix |
| Power Description | |
| Power Source | AC |
| Physical Characteristics | |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 7.2" |
| Weight (Approximate) | 3.75 lb |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Presentation |
| Application/Usage | Rental/Staging |
| Application/Usage | AV Scaler |
