HONEYWELL

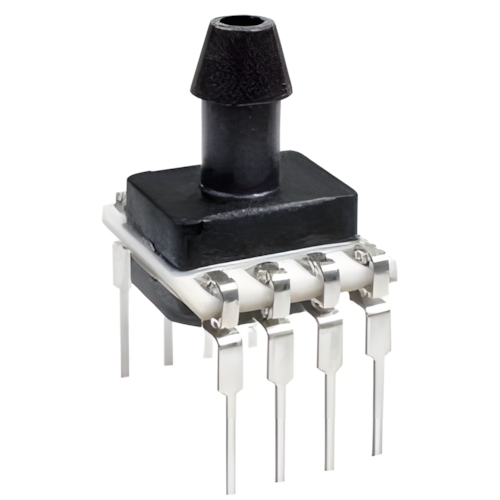

HONEYWELL SSCDANT030PASA5 Board Mount Pressure Sensor Comp/Amp, 8-DIP Sing Axial Barb Liquid media 0-30psi Abs, Digi SPI, Vs: 5V, Accur: ±0.25%, Resp t: 0.46ms, Op: -40~85°C
Mfg Part Number: SSCDANT030PASA5 , Item #: 2089174
Special Note: Jan 31, 2016
MOQ=20
Image may not reflect the actual item.
Price: $98.09
Quantity:
In Stock: 314
Last Updated: Oct 02, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Absolute |
|
|
Operating Pressure |
30PSI (206.84kPa) |
|
|
Output Type |
SPI |
|
|
Output |
12 b |
|
|
Accuracy |
±0.25% |
|
|
Voltage - Supply |
4.75V ~ 5.25V |
|
|
Port Size |
Male - 0.19" (4.93mm) Tube |
|
|
Port Style |
Barbed |
|
|
Features |
Amplified Output, Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
60PSI (413.69kPa) |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
8-DIP (0.524", 13.30mm), Top Port |
|
|
Supplier Device Package |
8-DIP |
| General Information | |
| Operating Pressure | 0 psi to 30 psi |
| Pressure Type | Absolute |
| Accuracy | 0.25 % |
| Output Type | Digital |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 5 V |
| Port Type | Single Axial Barbed |
| Package / Case | DIP |
