HONEYWELL
HONEYWELL SDX05G2 Board Mount Pressure Sensor Comp/Unamp, 0 to 5psi G, Ratiom Vout: 0-60mV, Accur: ±1%, Resp t: 0.1ms, 6-Pin PDIP-G2, Vs: 20V, Op: -40~85°C
Mfg Part Number: SDX05G2 , Item #: 2087936

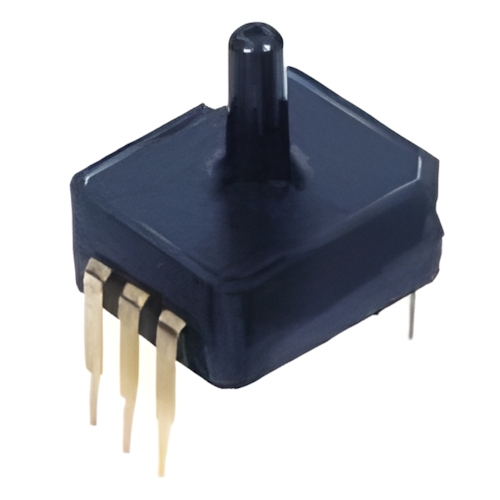

Image may not reflect the actual item.
Price: $230.97
Quantity:
In Stock: 1500
Last Updated: Oct 09, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Vented Gauge |
|
|
Operating Pressure |
5PSI (34.47kPa) |
|
|
Output Type |
Wheatstone Bridge |
|
|
Output |
0 mV ~ 60 mV (12V) |
|
|
Accuracy |
±1% |
|
|
Voltage - Supply |
20V |
|
|
Port Size |
Male - 0.11" (2.67mm) Tube |
|
|
Port Style |
Barbless |
|
|
Features |
Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
20PSI (137.9kPa) |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
6-DIP Module |
| General Information | |
| Operating Pressure | 0 psi to 5 psi |
| Pressure Type | Gauge |
| Accuracy | 0.2 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 20 V |
| Port Type | Single Axial Barbless |
| Package / Case | DIP |
