HONEYWELL

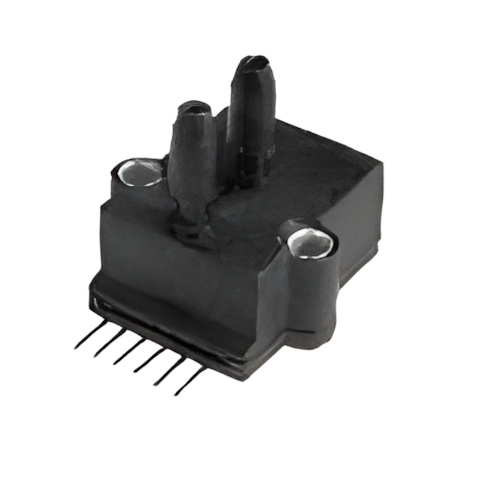

HONEYWELL SCX01DNC Board Mt Pressure Sensor T-comp, 6-SIP Dual barbed ports 0-1psi Diff, Vout: 0-18mV (12V), Accur: ±1%, Resp t: 0.1ms, Op: -40~85°C, Vs: 20V
Mfg Part Number: SCX01DNC , Item #: 2087922
Image may not reflect the actual item.
Price: $391.00
Quantity:
In Stock: 26
Last Updated: Oct 01, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Differential |
|
|
Operating Pressure |
1PSI (6.89kPa) |
|
|
Output Type |
Wheatstone Bridge |
|
|
Output |
0 mV ~ 18 mV (12V) |
|
|
Accuracy |
±1% |
|
|
Voltage - Supply |
20V |
|
|
Port Size |
Male - 0.19" (4.8mm) Tube, Dual |
|
|
Port Style |
Barbed |
|
|
Features |
Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
20PSI (137.9kPa) |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
6-SIP |
|
|
Supplier Device Package |
6-SIP |
| General Information | |
| Operating Pressure | 0 psi to 1 psi |
| Pressure Type | Gauge, Differential |
| Accuracy | 1 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 20 V |
| Port Type | Dual Radial Barbless |
| Package / Case | SIP-6 |
