HONEYWELL

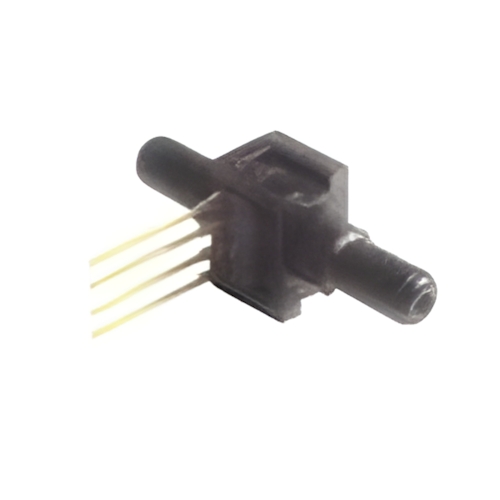

HONEYWELL 26PCDFA6D Board Mt Low Pressure Sensor Comp/Unamp, 0-30psi Diff, fluorosilicon Dual Axial Straight Barbless 1 x 4 SIP, Vout: 0-100mV (10V), Accur: ±0.2%, Resp t: 1ms, Op: -40~85°C
Mfg Part Number: 26PCDFA6D , Item #: 2063312
Image may not reflect the actual item.
Price: $94.55
Quantity:
In Stock: 507
Last Updated: Sep 29, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Differential |
|
|
Operating Pressure |
±30PSI (±206.84kPa) |
|
|
Output Type |
Wheatstone Bridge |
|
|
Output |
0 mV ~ 100 mV (10V) |
|
|
Accuracy |
±0.2% |
|
|
Voltage - Supply |
2.5V ~ 16V |
|
|
Port Size |
Male - 0.2" (5.08mm) Tube, Dual |
|
|
Port Style |
Barbless |
|
|
Features |
Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
±60PSI (±413.69kPa) |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
4-SIP Module |
| General Information | |
| Operating Pressure | +/- 30 psi |
| Pressure Type | Vacuum, Gauge, Differential |
| Accuracy | 0.4 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 10 V |
| Port Type | Dual Axial Barbless, Opposite Sides |
| Package / Case | SIP-4 / Dual Ports, Opposite Sides |
