HONEYWELL

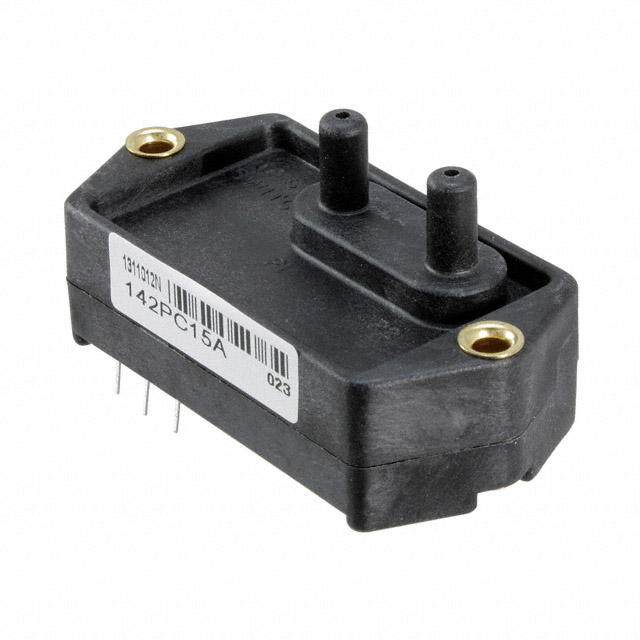

HONEYWELL 142PC15A Board Mount Pressure Sensor T-comp, 0-15psi Abs, 3-Pin SIP, Vout: 1-6V (8V), Accur: ±0.87%, Vs: 7-16V, Op: -40~85°C
Mfg Part Number: 142PC15A , Item #: 2061730
Image may not reflect the actual item.
Price: $780.31
Quantity:
In Stock: 40
Last Updated: Oct 04, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Absolute |
|
|
Operating Pressure |
2PSI ~ 15PSI (13.79kPa ~ 103.42kPa) |
|
|
Output Type |
Analog Voltage |
|
|
Output |
1 V ~ 5.33 V |
|
|
Accuracy |
±0.4% |
|
|
Voltage - Supply |
7V ~ 16V |
|
|
Port Size |
Male - 0.2" (5mm) Tube |
|
|
Port Style |
Barbless |
|
|
Features |
Amplified Output, Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
45PSI (310.26kPa) |
|
|
Operating Temperature |
-40°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
3-SIP Module |
| General Information | |
| Operating Pressure | 0 psi to 15 psi |
| Pressure Type | Absolute |
| Accuracy | 0.25 % |
| Output Type | Analog |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 7 V to 16 V |
| Port Type | Dual Axial Barbless |
| Package / Case | SIP-3 |
