HONEYWELL

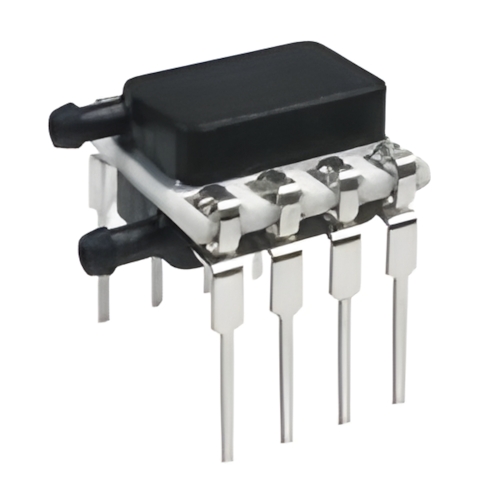

HONEYWELL HSCDRRT001PD2A3 Board Mount Pressure Sensor Comp/Amp, 8-DIP DualRadBarbed Sam Liquid media ±1psi Diff, Digi I²C Address 0x28, Vs: 3.3V, Accur: ±0.25%, Resp t: 0.46ms, Op: -20~85°C
Mfg Part Number: HSCDRRT001PD2A3 , Item #: 2058623
Image may not reflect the actual item.
Price: $107.26
Quantity:
In Stock: 5135
Last Updated: Oct 02, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Differential |
|
|
Operating Pressure |
±1PSI (±6.89kPa) |
|
|
Output Type |
I2C |
|
|
Output |
12 b |
|
|
Accuracy |
±0.25% |
|
|
Voltage - Supply |
3V ~ 3.6V |
|
|
Port Size |
Male - 0.08" (1.93mm) Tube, Dual |
|
|
Port Style |
Barbed |
|
|
Features |
Amplified Output, Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
±10PSI (±68.95kPa) |
|
|
Operating Temperature |
-20°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
8-DIP (0.524", 13.30mm), Dual Ports, Same Side |
|
|
Supplier Device Package |
8-DIP |
| General Information | |
| Operating Pressure | +/- 1 psi |
| Pressure Type | Differential |
| Accuracy | 0.25 % |
| Output Type | Digital |
| Mounting Style | Through Hole |
| Operating Supply Voltage | 3.3 V |
| Port Type | Dual Radial Barbed |
| Package / Case | DIP |
