HONEYWELL

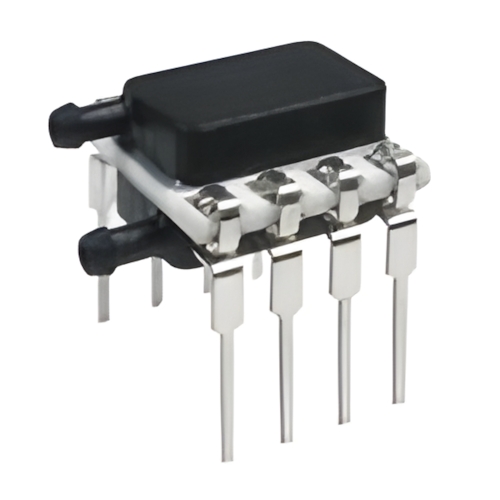

HONEYWELL HSCDRRN160MD2A5 Board Mount Pressure Sensor Comp/Amp, 8-DIP Dual Radial Barb Sam Dry gas ±160mbar Differ, Digi I²C Address 0x28, Vs: 5V, Accur: ±0.25%, Resp t: 0.46ms, Op: -20~85°C
Mfg Part Number: HSCDRRN160MD2A5 , Item #: 2056260
Special Note: Oct 27, 2015
MOQ=20
Image may not reflect the actual item.
Price: $94.99
Quantity:
In Stock: 870
Last Updated: Sep 30, 2025
No Sales Tax except these states
, PO and Wire.
|
Applications |
Board Mount |
|
|
Pressure Type |
Differential |
|
|
Operating Pressure |
-2.321PSI ~ 2.321PSI (-16.003 kPA ~ 16.003kPa) |
|
|
Output Type |
I2C |
|
|
Output |
12 b |
|
|
Accuracy |
±0.25% |
|
|
Voltage - Supply |
4.75V ~ 5.25V |
|
|
Port Size |
Male - 0.08" (1.93mm) Tube, Dual |
|
|
Port Style |
Barbed |
|
|
Features |
Temperature Compensated |
|
|
Termination Style |
PC Pin |
|
|
Maximum Pressure |
20.3053PSI (140kPa) |
|
|
Operating Temperature |
-20°C ~ 85°C |
|
|
Mounting Type |
Through Hole |
|
|
Package / Case |
8-DIP (0.524", 13.30mm), Dual Ports, Same Side |
|
| General Information | |
| Operating Pressure | - |
| Pressure Type | - |
| Accuracy | - |
| Output Type | - |
| Mounting Style | - |
| Operating Supply Voltage | - |
| Port Type | - |
| Package / Case | DIP |
